Removing The Outer A-Pillar In Area Of Windscreen
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

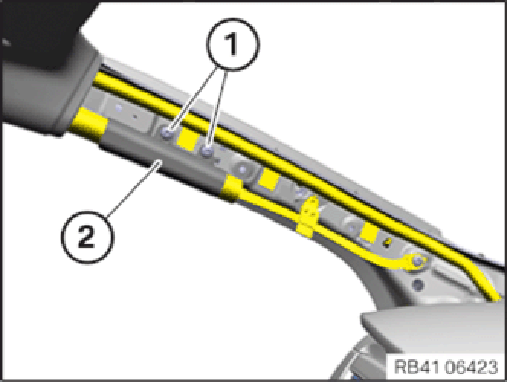

- Unscrew screws (1)
and remove deformation element (2).
- Release wiring harness (1)
at attachment points.NOTE: RISK OF DAMAGE
Damaging the airbag
Kinking or bending the airbag may damage the airbag and result in a malfunction of the airbag .- Handle airbag carefully and move it minimally by hand.
- Do not kink or bend the airbag.

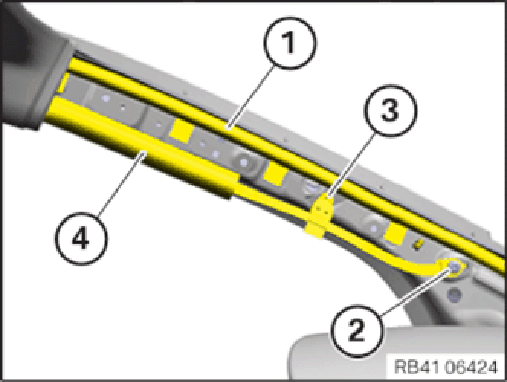

- Loosen the screw (2) and clamp (3) for the airbag (4).
- Use a protective sleeve (1) to protect the airbag.
- Check the protective sleeve for damage before use.
- Do not use protective sleeves which are damaged.
- Use a hook and loop fastener (2)
and a loop (3) to fasten the airbag and protective sleeve.
- Slide protective sleeve (1) onto airbag under headliner so that the airbag is covered.
- Secure the protective sleeve to the hook and loop fastener (2).
- Secure protective sleeve and airbag against kinking.
- Cover opening (1)
between body and headliner to protect against welding beads and flying sparks.

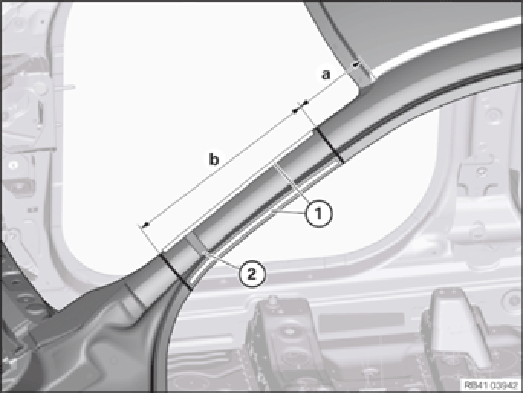

- Mark and perform the separating cuts to match the specified dimensions. Thereby disconnect only the outer panel.
Dimension (a) = 150 mm from the corner of the roof frame.
Dimension (b) = 380 mm below separating cut a.
- Release welded connections in areas (1).
- Release and remove the section of the A-pillar from the cavity sealing (2).
