Remove Roof Outer Skin

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

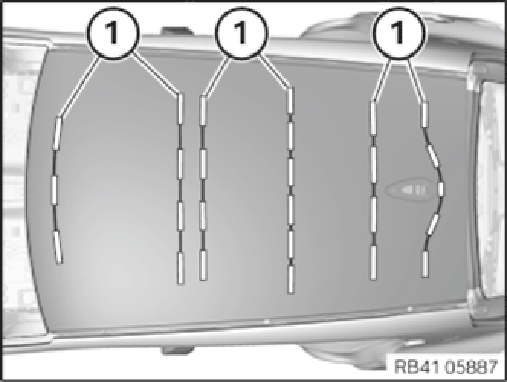

Open the welded connections in areas (1) on the left and right sides.

Courtesy of BMW OF NORTH AMERICA, INC.
Release welded connections in areas (1).
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections

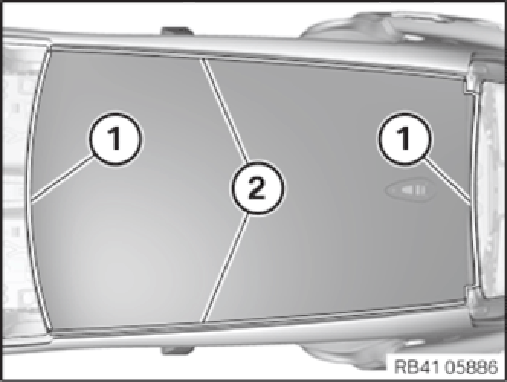

Open spot-welded adhesive joints in areas (2).

Courtesy of BMW OF NORTH AMERICA, INC.

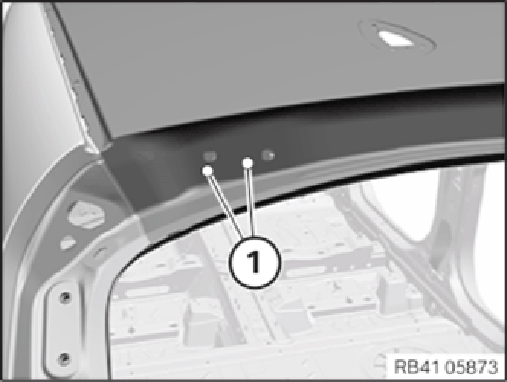

Open the bonded connections in areas (1).
Take off roof outer skin.

Courtesy of BMW OF NORTH AMERICA, INC.
