Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
Adhesive technology in the area of the outer skin (not for structural adhesion):
The bonding surfaces of the new parts may not sharpened or ground.
For more information see: 41 00... BMW bonding instructions
- Place the roof outer skin in position on the vehicle and adjust it to fit together with the roof trim strips.
- In order to adhere to the short processing time from the application of the adhesive, get the following mounting materials ready before installation.
- In order to fasten the roof outer skin, at the mounting holes (1), have the M6 screws, nuts and washers ready.

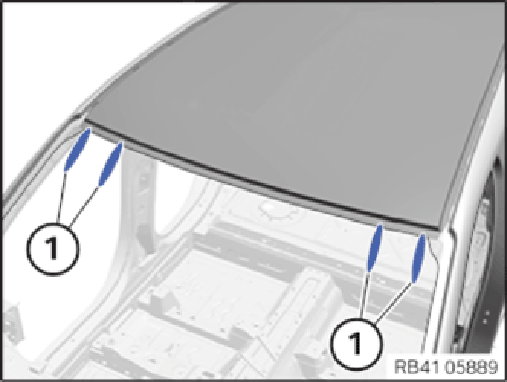

- Prepare 4 locking pliers (1) for fastening the roof outer skin.
- Take off roof outer skin.
