Installing The Roof Outer Skin
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

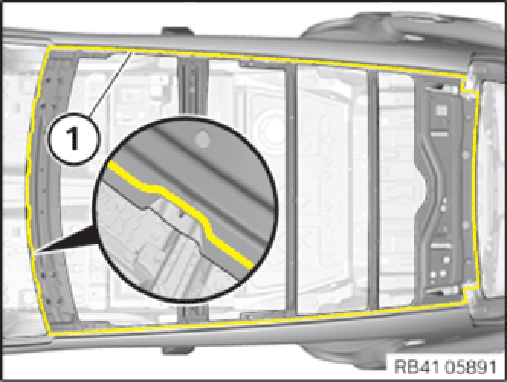

- Pre-clean bonding surfaces (1)
on the vehicle and new part with the cleaning solvent R2.CONSUMABLE DESCRIPTION
Cleaning agent R2 500 ml 83190417324 - Clean the bonding surfaces (1)
on the vehicle and the new part with the solvent cleaner R1.CONSUMABLE DESCRIPTION
Cleaning agent R1 100 ml, Bottle 83192211217 - Pre-clean bonding surfaces (1) on the vehicle and new part with the cleaning solvent R2.
- Clean the bonding surfaces (1)
on the vehicle and the new part with the solvent cleaner R1.
- In areas (1), apply sealant D2 similar to the series.CONSUMABLE DESCRIPTION

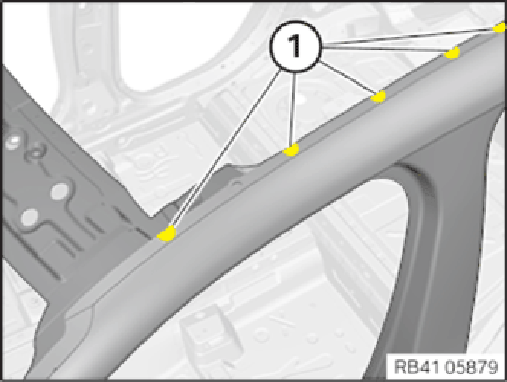

Sealant D2 290 ml 83425A547B9 - On the left and right roof frame, top up all flange recesses (1) with adhesive K5 and smooth out. (levelling)
- Apply adhesive in such a way that all flange recesses are level to the rest of the bonding surface.ADHESIVE DESCRIPTION

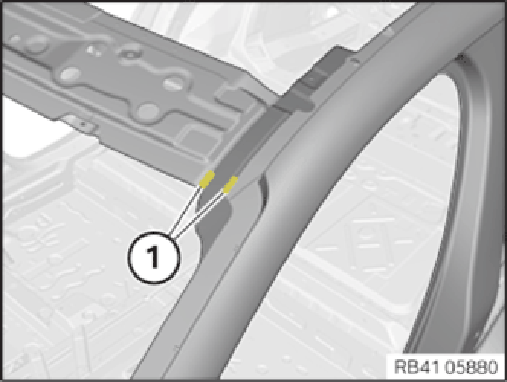

Body adhesive K5 50 ml 83192158654 ADHESIVE DESCRIPTIONBody adhesive K5 195 ml 83195A59935 - Top up the increments (1) on the front left and right convertible top bow with adhesive K5 and smooth out. (levelling)
- Apply adhesive in such a way that the increments are level to the rest of the bonding surface.
- Top up the increments on the rear left and right convertible top bow (1) with adhesive K5 and smooth out. (levelling)
- Apply adhesive in such a way that all flange recesses and increments are level to the rest of the bonding surface.

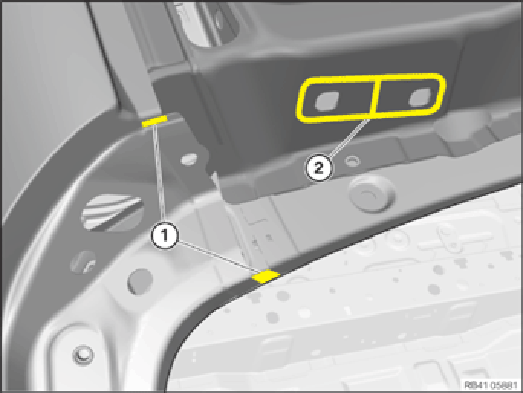

- In area (2)
of the hinge mount, apply adhesive K5 on the left and right.

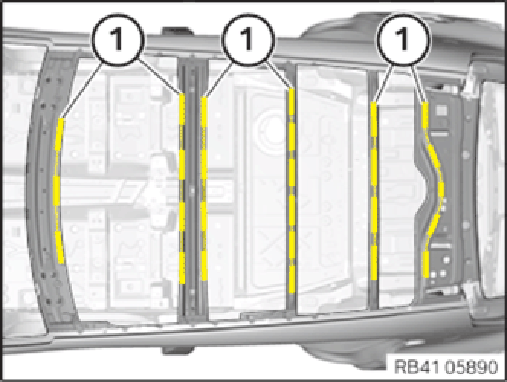

- In areas (1), apply adhesive K5.
- Place roof outer skin on the vehicle evenly in the centre with the help of an auxiliary person and adjust it.

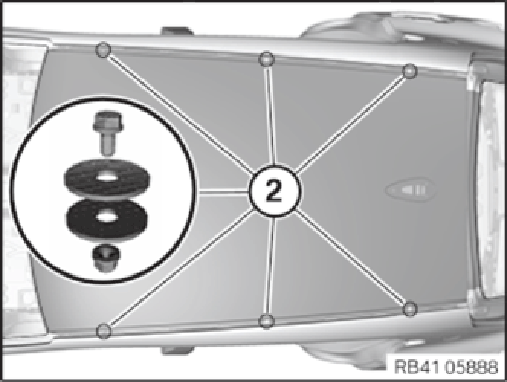

- Position the screws M6, the nuts and the washers on mounting holes (1) of the roof rails. Tighten the screw connections until hand-tight.
- Make sure that no adhesive touches the screw connections.
- Remove the screw connections after the adhesive has hardened.
- In area (1), rivet the roof outer skin with 7 punch rivets N5.CONSUMABLE DESCRIPTION
Punch rivet N5
Ω 5 mm; 5 mm long83192158079 - In addition, fix the roof outer skin with locking pliers (2).

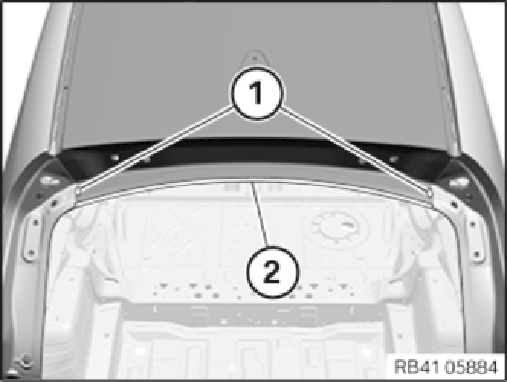

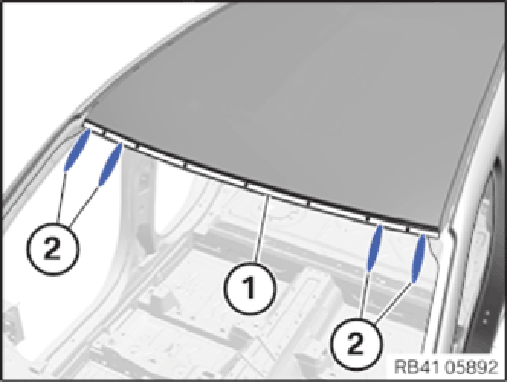

- In areas (1), rivet the roof outer skin with two punch rivets N4.
- In area (2), rivet the roof outer skin with 8 punch rivets N4.CONSUMABLE DESCRIPTION
Punch rivet N4
Ω 3 mm; 4 mm long83192457307 - Adhesive at the nodes of the A-pillar and D-pillar:
Align the stage (1) between the roof outer skin (2) and the A-pillar or roof outer skin (2) and D-pillar with the emerging adhesive.
Do not leave any sharp edges since this could cause leaks when subsequently bonding the windscreen and the rear window.
- Spread excess adhesive in roof trim strip channel.
While doing so, the mounting surfaces of roof trim strip mounting elements may not be coated with adhesive.
- Remove excess adhesive. Do not use any cleaning agent or solvent!
Installing the EMC screw
- Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
- Screw in the EMC screw.CONSUMABLE DESCRIPTION
EMC screw SF Plus M5x15 83190301639 - Seal the EMC screw with the sealant.CONSUMABLE DESCRIPTION
Sealant D1 (seam sealing) 310ml 83422409985 NOTE: Perform the steps on the left and right side. - After the adhesive has hardened, install an EMC screw.

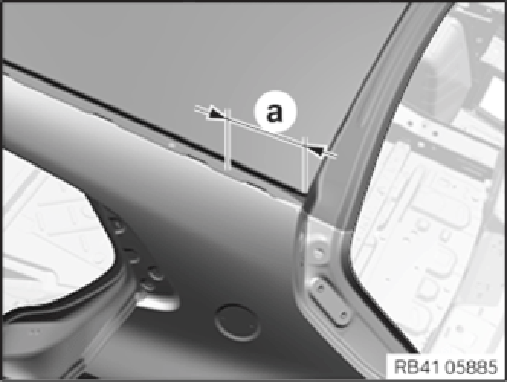

Dimension (a) = approximately 140 mm in front of the corner of the roof outer skin
CONSUMABLE DESCRIPTIONscrew
EMC screw, SF Plus, M5x1583190301639 - Adjust the roof rail and roof trim strip in the area of the EMC screw.
