Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Mark severance cuts on new part in accordance with severance cuts on vehicle and cut.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel) - Prepare reinforcement plates at severance cuts.

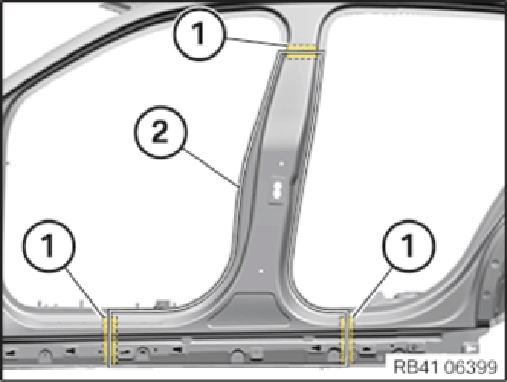

- Adjust the new part and the reinforcement plates (1)
and prepare them for joining by welding in area (2).
