Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Release the unnecessary components of new parts of the centre side frame and the inner side frame.

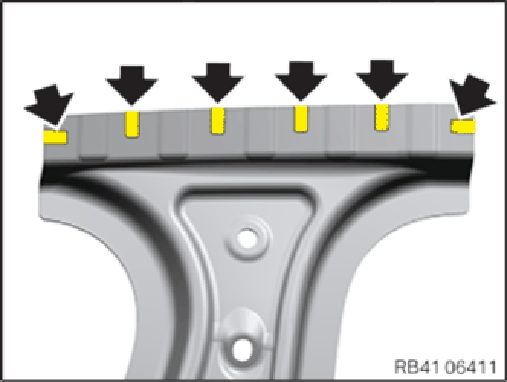

- Prepare the upper area of the new B-pillar reinforcement for joining by plug-welding. Make 6x15 mm elongated holes (arrows).

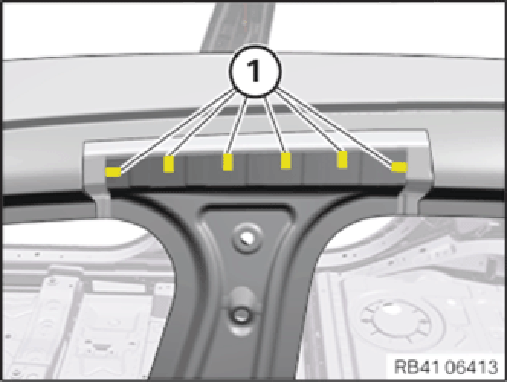

- Prepare the lower area of the new B-pillar reinforcement for joining by plug-welding. Make 6x15 mm elongated holes (arrows).

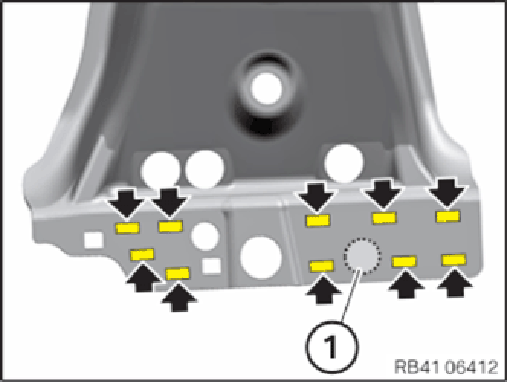

- When creating the elongated holes, note the recess (1)
in the side member below it.
- Adjust the new B-pillar inner section and B-pillar reinforcement using an alignment bracket or universal fixture and secure in place.

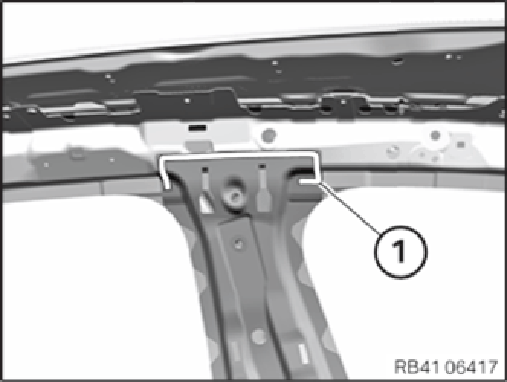

- Prepare the body in the areas (1)
for MAG weld.

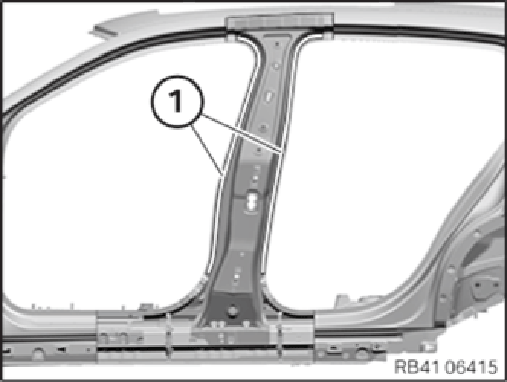

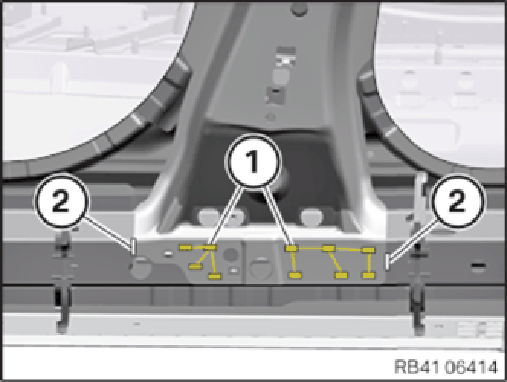

- Prepare the body for MAG weld in the lower area of the B-pillar reinforcement (1).
- Also prepare a 15 mm - long metal active gas welded connection in the areas (2).

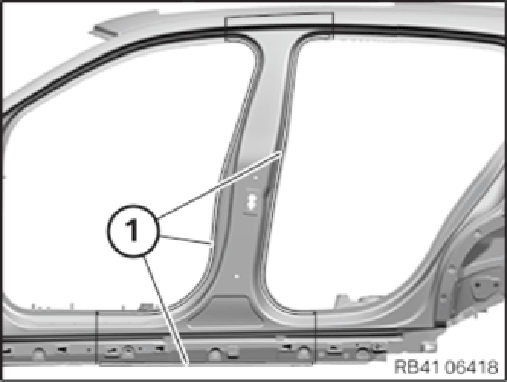

- Prepare the new parts in the areas (1)
for joining by welding.

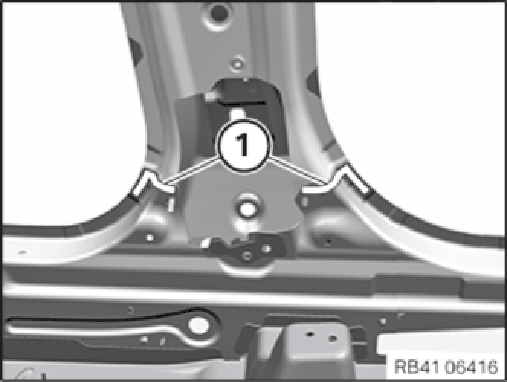

- Prepare the new parts in the areas (1)
for joining by welding.
- Prepare the new parts for joining by welding in the area (1).
- Mark out and make separating cuts on the new Espillar outer skin in accordance with the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel) - Create reinforcement plates for the separating cuts.
- Adjust the reinforcement plates and prepare for joining by welding.
- Adjust the new part B-pillar outer skin and prepare for joining by welding in the areas (1).
