Remove A-Pillar Reinforcement
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

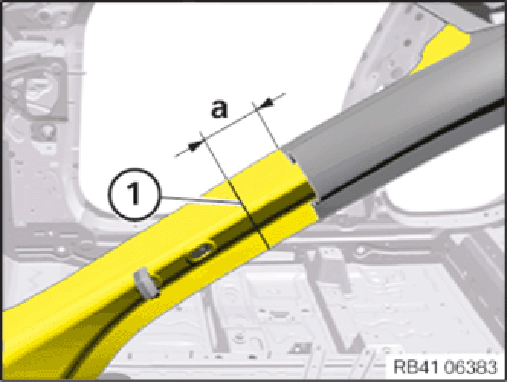

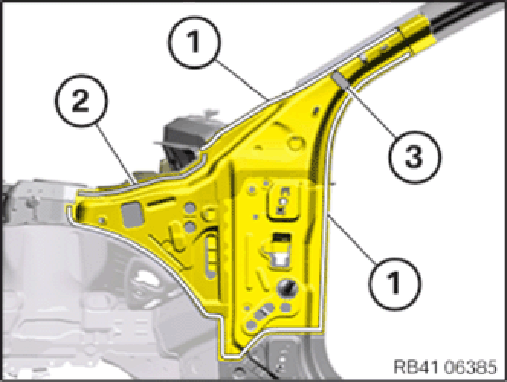

- Mark and carry out the separating cut (1)
as per dimension a. Thereby disconnect only the outer panel.
Dimension a = 260 mm from the corner of the roof frame.
- Release welded connections in areas (1).
- Release the outer section of the A-pillar from the cavity sealing (2).
- Mark and carry out the separating cut (1)
as per dimension a. Thereby disconnect only the outer panel.
Dimension a = 115 mm from hole Ω 20 mm.
- Release welded connections in areas (1).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections - Release the spot-welded adhesive joints in area (2).
- Release the A-pillar outer skin from the cavity sealing (3) and remove.

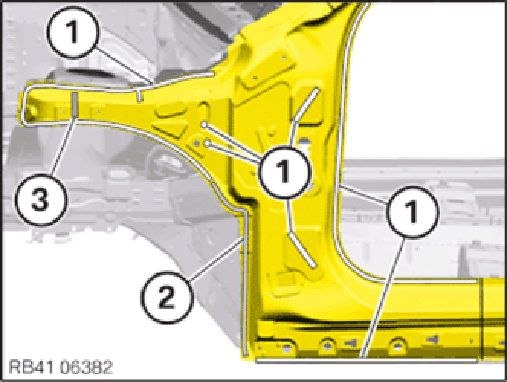

- Mark and carry out the separating cut (1)
as per dimension a. While doing so, do not damage the water drain hose of the slide/tilt sunroof. Disconnect only the outer panel.
Dimension a = 50 mm from the separating cut on the A-pillar outer skin.
- Release welded connections in areas (1).
- Release the spot-welded adhesive joints in area (2).
- Release the A-pillar from the cavity sealing (3)
.

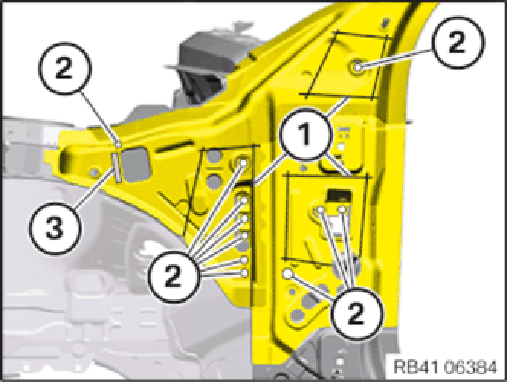

- Mark rough separating cuts (1)
as shown and carry out. Thereby disconnect only the outer panel.
Remove sheet sections.
- Release welded connections in areas (2).
- Open spot-welded adhesive joints in area (3) and remove A-pillar reinforcement.

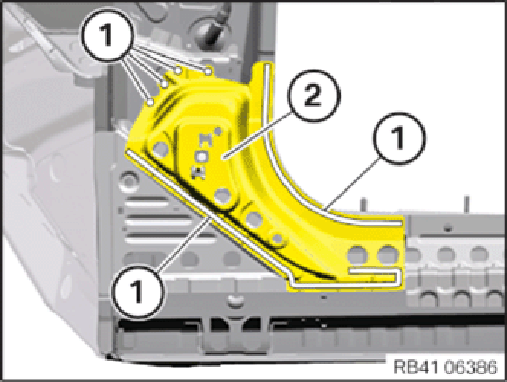

- Open welded connections in areas (1)
and remove the hinge reinforcement (2).
