Installing The Rear Outer Wheel Arch Section

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

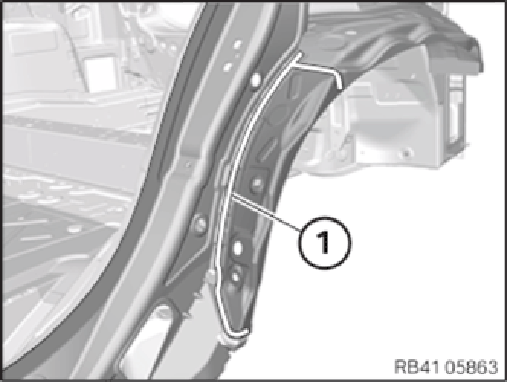

Install the new parts and weld them in this area (1) as per the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.
Weld new parts in the area (1) as per the new part preparation process.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... I Installation of a cavity sealing (not expanding)

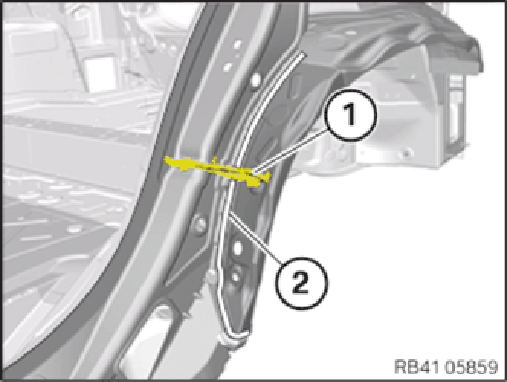

Apply the sealant D1 to the cavity sealing (1) and install the cavity sealing (1).
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310 ml 83422409985

Courtesy of BMW OF NORTH AMERICA, INC.
After drying of the sealant in the area of the three-panel joint (2) with the primer and the cavity protection wax, carry out corrosion protection measures.
Take corrosion protection measures in the remaining joining area as well.
Take corrosion protection measures before installing the side panel.
