Removing The Rear Outer Wheel Arch Section
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

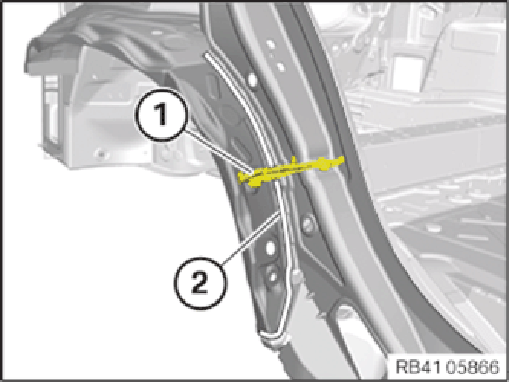

- Remove cavity sealing (1).
- Open welded connections in area (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|

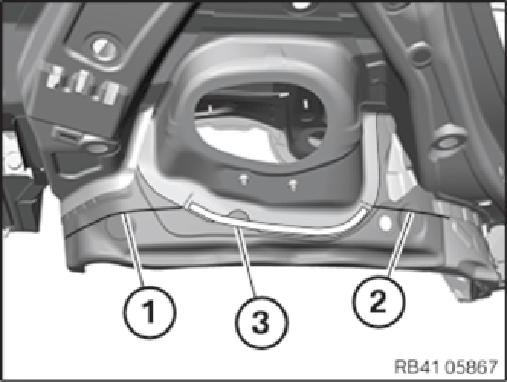

- Mark and make the separating cuts (1)
and (2)
as shown.
- Release the welded connections in area (3) and remove the section of the outer wheel arch section.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
