Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

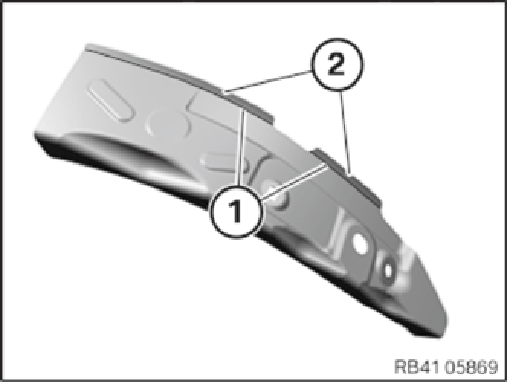

- Renew the coarse thread bolt (1)
and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1)
and threaded weld bolt (2)
onto the new part.
- Mark separating cuts (1)
on new part as per separating cuts on vehicle +15 mm material allowance and cut.
(2) = separating cut route on vehicle

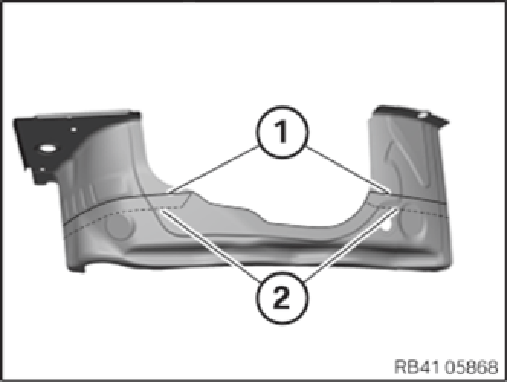

- Perform separating cuts (1) on new part as shown,
- Remove panel strips (2).
- Adjust the new part in combination with the side panel to fit and secure.

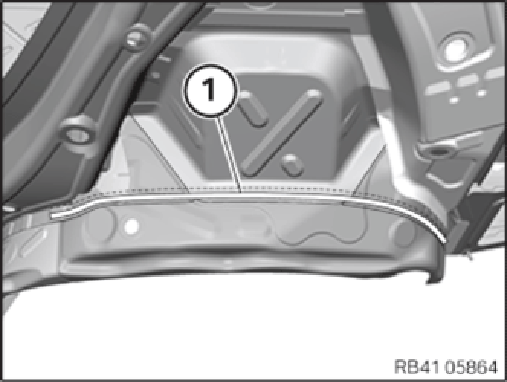

- Prepare area (1)
for joining by welding,
Prepare area (1) so that all three panels can be welded together.

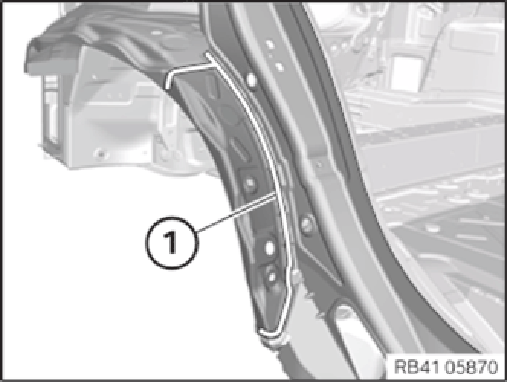

- Prepare area (1)
for joining by welding.
