Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Remove unnecessary components from new part.

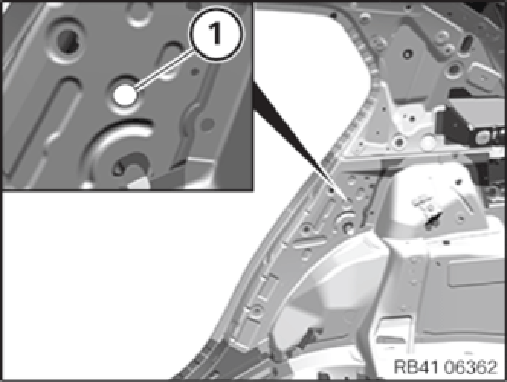

- Remove adhesive residue in area (1).
- Adjust the new outer wheel arch section together with the side panel.

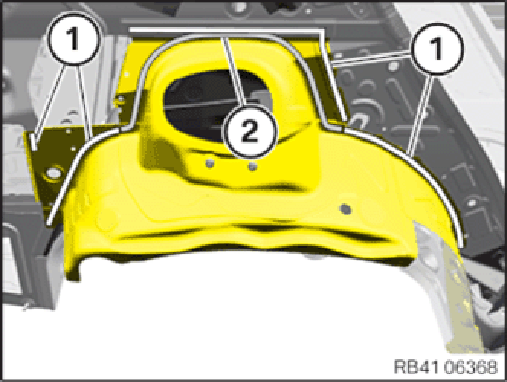

- Prepare the new part in areas (1)
and (2)
for joining by welding.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components - In area (2), observe the procedure for the replacement of spot-welded adhesive joints for the series.NOTE: TECHNICAL INFORMATION

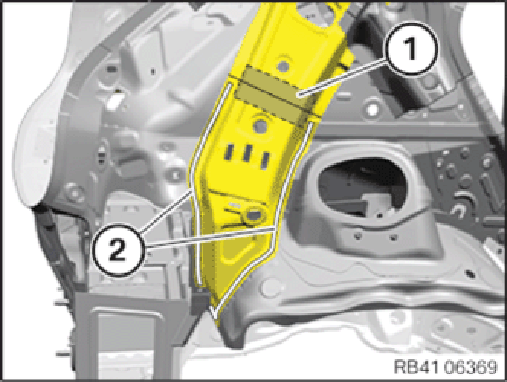

For additional information see: 41 00... Welding in reinforcement plates (sheet steel) - Prepare a reinforcement plate (1) in the area of the separating cut.
- Adjust new part C-pillar reinforcement.
- Prepare the reinforcement plate (1), the separating cut and areas (2)
for joining by welding.

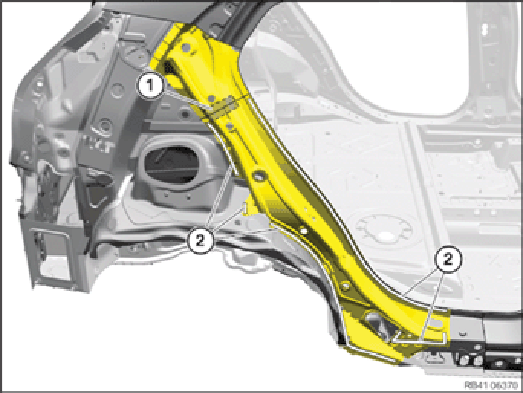

- Prepare a reinforcement plate (1) in the area of the separating cut.
- Adjust new part C-pillar reinforcement.
- Prepare the reinforcement plate (1), the separating cut and areas (2)
for joining by welding.

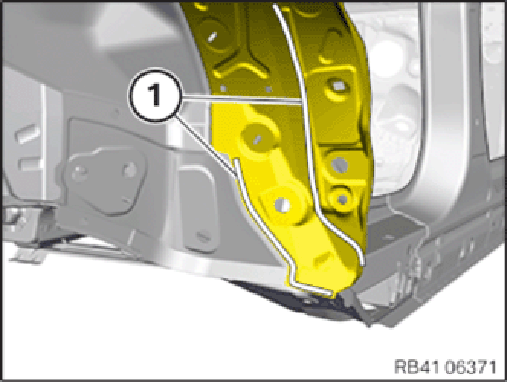

- Prepare the new parts for joining by welding in the areas (1).

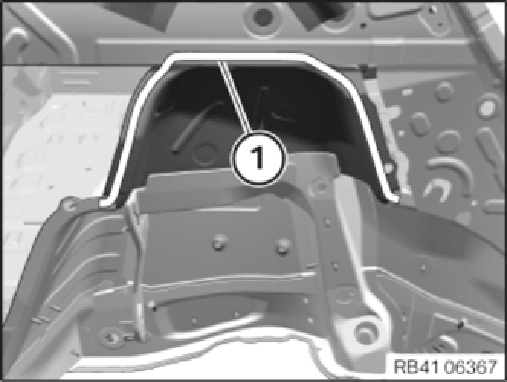

- Prepare area (1)
for joining by welding.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1)
and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1)
and threaded weld bolt (2)
onto the new part.
