Remove The Outer Wheel Arch Section With The Reinforcement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Open welded connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

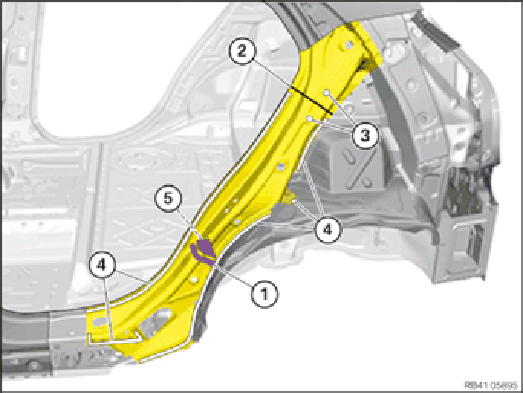

Remove the outer cavity sealing (1).
Make separating cut (2) in the centre between the holes (3) .
Release welded connections in areas (4).
Release the C-pillar support from the cavity sealing (5) and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

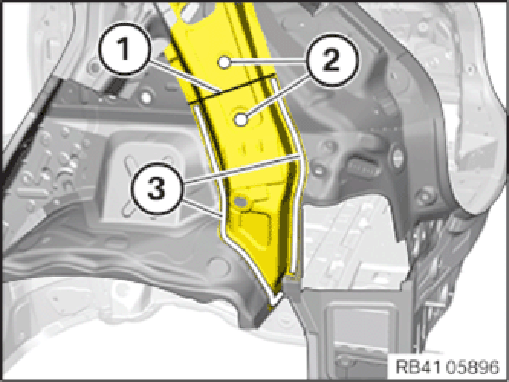

Make separating cut (1) in the centre between the holes (2).
Loosen welded connections in areas (3) . Remove reinforcement on C-pillar.

Courtesy of BMW OF NORTH AMERICA, INC.

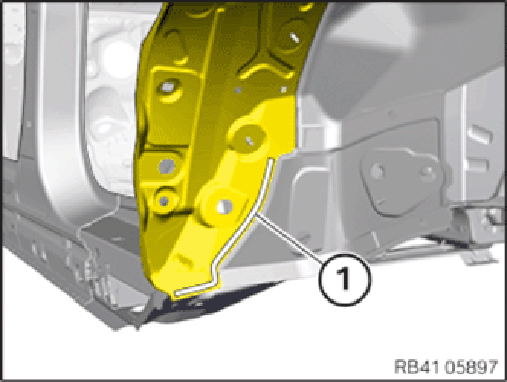

Open welded connections in area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

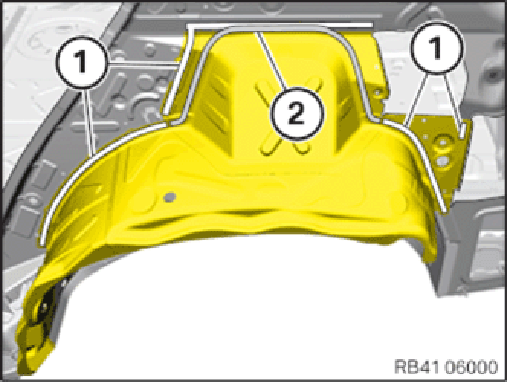

Release welded connections in areas (1).
NOTE:
TECHNICAL INFORMATION
For additional information see: 41 00... Releasing bonded connections
- Release the spot-welded adhesive joints in area (2).
- Remove outer section of wheel arch.
Courtesy of BMW OF NORTH AMERICA, INC.
