Prepare New Parts
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

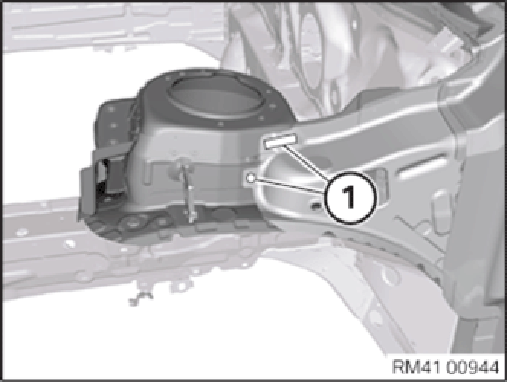

- Release welded connections in areas (1).
- Release welded connections in areas (1).

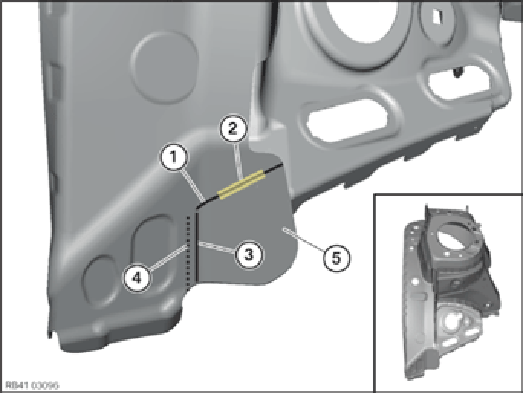

- Mark and make the separating cut (1) according to the separating cut on the vehicle.
- Cut through both panels in area (2). In the area (2) the width of the separating cut must be approximately 5 mm, so that both panels can be welded to the body.
- Mark and carry out separating cut (3) according to the separating cut on the vehicle + approx. 5 mm material allowance. (4) = Separating cut on the vehicle.
- Remove the cut panel section (5).
- Adjust new parts to fit with alignment bracket or universal mounting.
- Prepare for joining by welding in areas (1)
and (2).
- Prepare for joining by welding in areas (1).
- Prepare areas (1)
to (3) for joining by welding. Prepare areas (2)
and 3 so that all three panels can be welded to each other.
- Prepare for joining by welding in the areas (1)
to (4).
- Prepare the new parts in the areas (1)
for joining by welding.
- Install new part and prepare for joining by welding in areas (1)
and (2).
(3) = position of the cavity sealing.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1)
and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1)
and threaded weld bolt (2)
onto the new part.
Check ground pins and replace if necessary
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Check the ground pins (1)
for stability and renew if necessary.
