Supplying The New Parts Required
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Vehicle is fixed on straightening bench.NOTE: TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
- Observe the procedure for repair stage 3.
Preliminary work
Follow-up work
- Procure the following new parts (see Electronic Parts Catalog):

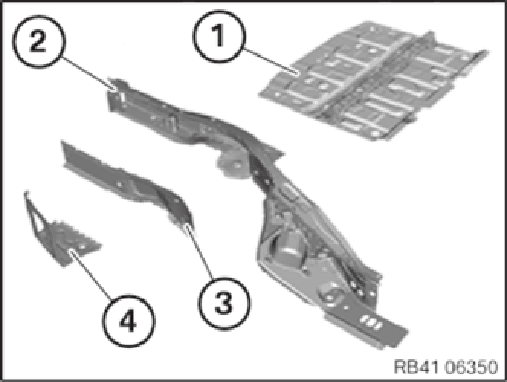

Luggage compartment floor (1) Rear side member (2) End plate, side member (3) Luggage compartment floor (4)
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Adhesive K5 (50 ml) 2 Blind rivet N3 30 Coarse thread bolt 15 EMC screw 6 Cleaning agent R1 1 Cleaning agent R2 1 Sealing compound D1 1 Cavity protection wax remover 1
