Install New Parts

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Install the left side member

NOTE: TECHNICAL INFORMATION
Use only approved spot welder for repair.
For additional information see: 41 00... Workshop equipment

Install and secure the new parts with an alignment bracket or a universal fixture.

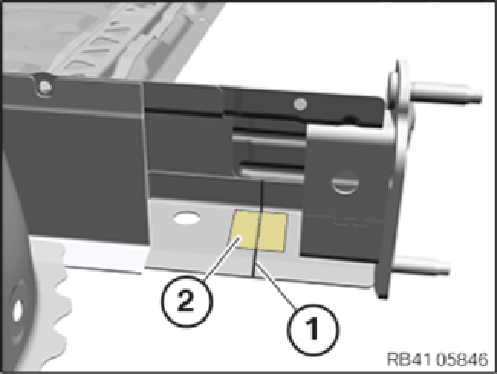

Weld the separating cut (1) and reinforcement plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

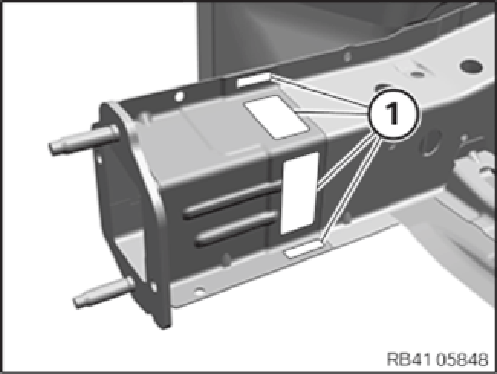

Weld the new parts in the area (1).

Courtesy of BMW OF NORTH AMERICA, INC.

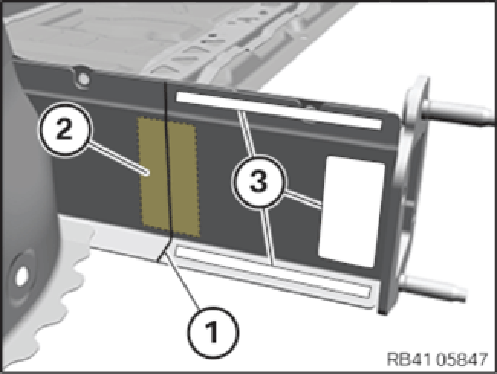

Weld the separating cut (1) and reinforcement plate (2).
Weld the new parts in the area (3) .

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the left luggage compartment floor

NOTE: TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.
Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE DESCRIPTION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to the bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K5 50 ml 83192158654
Install new part.

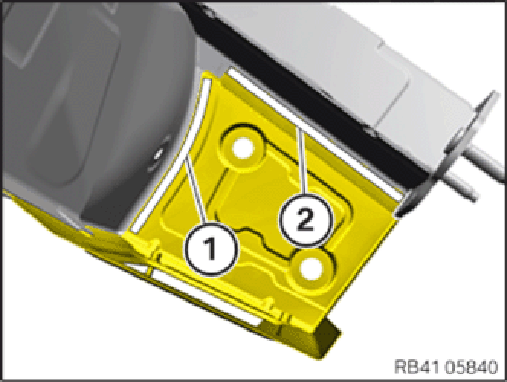

Rivet the new part in the areas (1) and (2) with blind rivets N3.
CONSUMABLE DESCRIPTION

Blind rivet N3
Ω 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.
Rivet the new part in the areas (1) and (2) with blind rivets N3.
CONSUMABLE DESCRIPTION

Blind rivet N3
Ω 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw
Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
Screw in the EMC screw.
CONSUMABLE DESCRIPTION

EMC screw SF Plus M5x15 83190301639
Seal the EMC screw with the sealant.
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310ml 83422409985

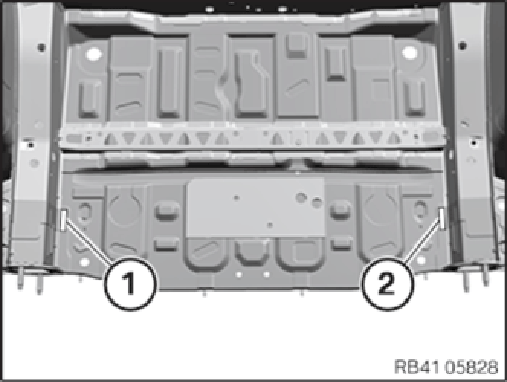

After hardening of the adhesive in areas (1) and (2), fit 3 EMC screws.
CONSUMABLE DESCRIPTION

screw
EMC screw, SF Plus, M5x15 83190301639

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the rear luggage compartment floor

NOTE: TECHNICAL INFORMATION
When installing the new part, make sure that all bonding surfaces have sufficient adhesive.
Pre-clean bonding surfaces on vehicle and on new part with cleaning agent R2.
CONSUMABLE DESCRIPTION

Cleaning agent R2 500 ml 83190417324
Clean bonding surfaces on vehicle and on new part with cleaning agent R1.
CONSUMABLE DESCRIPTION

Cleaning agent R1 100 ml, Bottle 83192211217
Apply adhesive K5 to the bonding surfaces.
ADHESIVE DESCRIPTION

Body adhesive K5 50 ml 83192158654
Install new part.
Rivet new part in the areas (1) to (3) with blind rivets N3.
CONSUMABLE DESCRIPTION

Blind rivet N3
Ω 4 mm; clamping area 1-3 mm 83190301421

Courtesy of BMW OF NORTH AMERICA, INC.
Weld holder (2) in areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the EMC screw
Drill a hole with a diameter of 4.2 mm.
In the case of glued connections, only drill the hole after the adhesive has fully hardened.
Screw in the EMC screw.
CONSUMABLE DESCRIPTION

EMC screw SF Plus M5x15 83190301639
Seal the EMC screw with the sealant.
CONSUMABLE DESCRIPTION

Sealant D1 (seam sealing) 310ml 83422409985
After the adhesive has hardened in areas (1) and (2), install one EMC screw in each case.
CONSUMABLE DESCRIPTION

screw
EMC screw, SF Plus, M5x15 83190301639

Courtesy of BMW OF NORTH AMERICA, INC.
