Preparing New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Adjust new part to fit and secure.

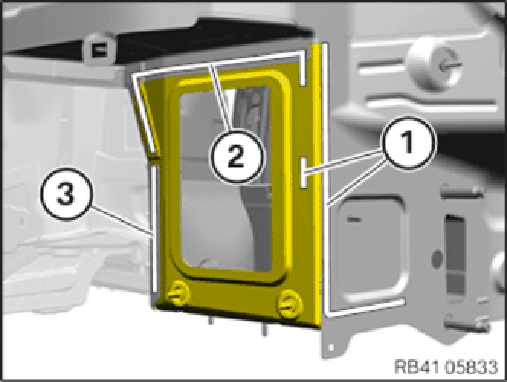

- Adapt the joining area (3) to the new part and the vehicle so that the new part can be fitted from the outside in the (3) area.
- Prepare for joining by welding in the areas (1)
to (3)
.

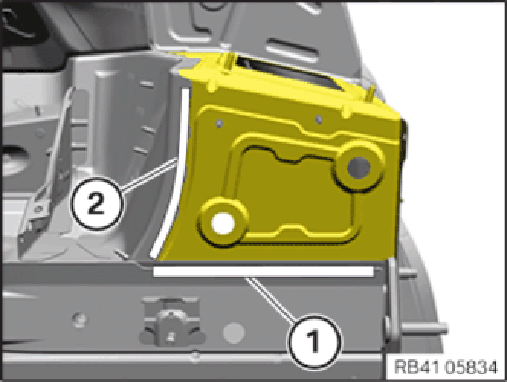

- Adapt the joining area (2) to the new part and the vehicle so that the new part can be fitted from the outside in the (3) area.
- Prepare areas (1)
and (2) for joining by welding.
Replacing the coarse thread bolt and threaded weld bolts (steel surface)
NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details. - Renew the coarse thread bolt (1)
and the threaded weld bolt (2).
Parts: Coarse thread bolt, threaded weld bolt
Take the number and position from the component to be replaced or the add-ons.
- Weld the coarse thread bolt (1)
and threaded weld bolt (2) onto the new part.
