Remove The Door Sill At The Front Door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

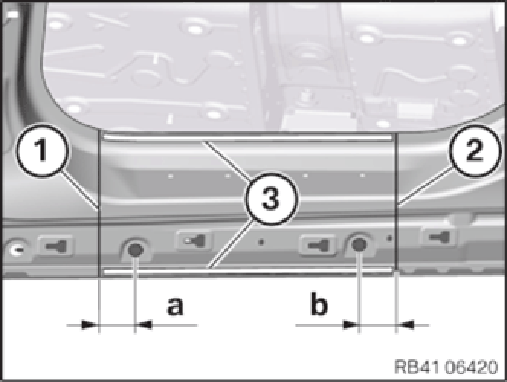

- Mark and carry out the separating cuts (1)
and (2)
according to the specified dimensions. Thereby disconnect only the outer panel.
Dimension a = 50 mm from the centre of the Ω 20 mm hole.
Dimension b = 55 mm from the centre of the Ω 20 mm hole.
- Loosen welded connections in areas (3) .
- Remove the section of the side sill.
