Prepare New Part
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Remove adhesive residue in area (2).
- Adjust new part and prepare for joining by welding in areas (1) and (2).NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Spot-weld bonding steel components - In area (2), observe the procedure for the replacement of spot-welded adhesive joints for standard production.
- Observe the installation position of the cavity sealing (3).
- Carry out the separating cuts on the new part according to the separating cuts on the vehicle.NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Welding in reinforcement plates (sheet steel) - Prepare reinforcement plates at severance cuts.

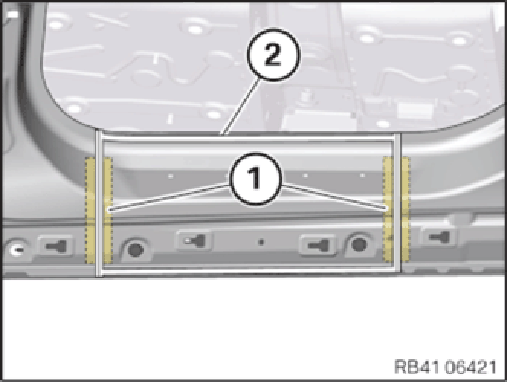

- Make a reinforcement plate (1)
(two parts) from the trim of the new part (2).
- Adjust the new part and the reinforcement plates (1) to fit.
- Prepare area (2) for joining by welding.
