Supplying the new parts required
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
- Vehicle is secured on the straightening bench.
NOTE:
TECHNICAL INFORMATION
- Observe the procedure for repair stage 3.
For additional information see: 41 00... Repair method for repair stage 3
- For information about stripping and rebuilding operations, refer to the surrounding text in the AIR. See the FRU number.
Preliminary work
Follow-up works

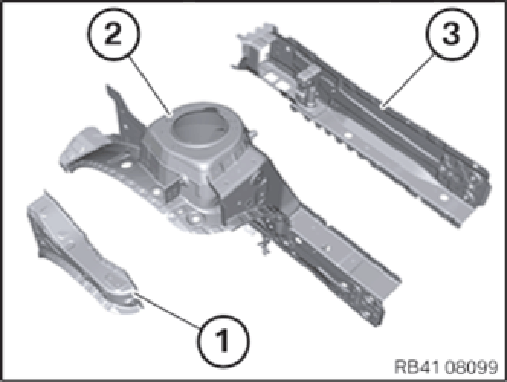

- Supply the following new parts (see Electronic Parts Catalogue EPC):
Outer wheel arch section carrier support (1)
Front spring support (2)
Inner engine support (3)
Front wheel arch carrier support shaped part
NOTE: TECHNICAL INFORMATION
For additional information see: 41 00... Overview of consumables in Electronic Parts Catalog - Supply the following consumables:
Material Quantity Coarse thread bolt 10 Threaded weld bolt 5 Sealing compound D1 1
