Installing front silencer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Component with heavy weight .
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component .
Heavy components can lead to injury or damage .

Remove and install heavy components with the aid of another person/other persons.

Replace the front silencer (1).
Parts: Front silencer
Guide in the front silencer (1) with the assistance of another person and install.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the front silencer (3) with a gripper clamp (2) to the new rear silencer (1).
Center the gripper clamp (2) and tighten nuts (4).

TIGHTENING TORQUE SPECIFICATIONS

Clamp with partial replacement of exhaust system
Clamp	tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the (1) ribbon clamp.
Parts: Ribbon cable clamp
Tighten the ribbon clamp (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to catalytic converter
Ribbon clamp Replace the ribbon clamp.	tightening torque	26 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing V-ribbon clip

V-band clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove sealing ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.
V-band (2) clamp.
Parts: V-band clamp
Install sealing ring (1) on the exhaust system.
Position sealing ring (1) for V-ribbon clip (2) correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Bend all sheet metal tabs around their entire perimeter (apart from those in the marked areas) with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

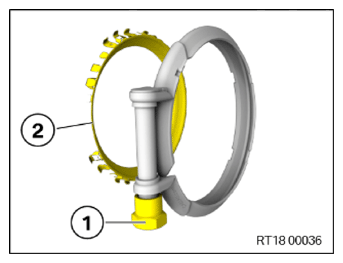

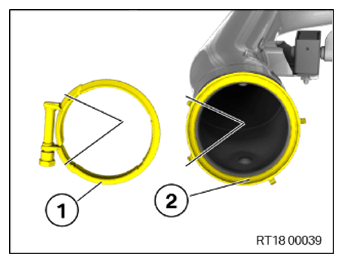

Mount the V-clip (1) on the sealing ring (2).
Make sure that the V-ribbon clip is (1) correctly positioned on the sealing ring (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that, after mounting, the V-ribbon clip is on the sheet metal tabs (marks).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the exhaust system (1) with the catalytic converter (2) in arrow direction and position it correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure the V-ribbon clip (1) is fitted correctly.
Tighten down screw (2).

TIGHTENING TORQUE SPECIFICATIONS

V-ribbon clip to catalytic converter
V-ribbon clip Replace V-ribbon clip.	tightening torque	25 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE FRONT CONNECTING SUPPORT .
