Remove front silencer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of BMW OF NORTH AMERICA, INC.

Preliminary work

Refer to REMOVING THE CONNECTING SUPPORT FROM THE TUNNEL AT FRONT AND REAR .

WARNING: Hot surfaces .
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight .
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

CAUTION: Heavy component .
Heavy components can lead to injury or damage .

Remove and install heavy components with the aid of another person/other persons.

CAUTION: Shavings resulting from sawing or grinding components .
Injury hazard!

Conduct all work in appropriate personal protective equipment only.
Wear safety goggles and hand protection.

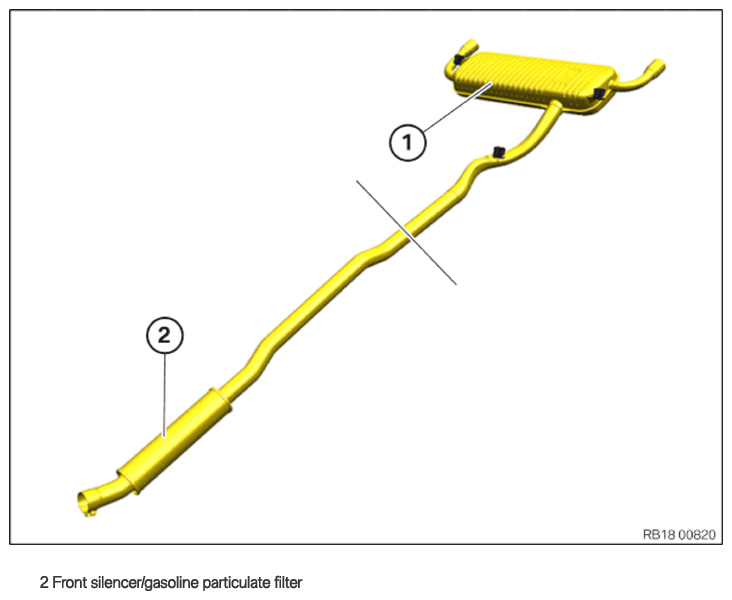

If the separation point is not marked by a punch mark in the pipe, determine the separation point by the length of the pipe on the new component.
Transfer the separation point to the component to be replaced and mark.
Cut through the component to be replaced at the marked point with a suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.
Detach the ribbon clamp (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

For equipment specification with V-ribbon clip: Release V-ribbon clip

Loosen V-band clamp (1) .

Courtesy of BMW OF NORTH AMERICA, INC.

Guide out and remove front silencer (1) with the help of a support person.

Courtesy of BMW OF NORTH AMERICA, INC.
