Removing the rear silencer
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Replacing the rear silencer
Preliminary work
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
CAUTION:
Component with heavy weight
.
Injury hazard!
Injury hazard!
- Note component's center of gravity.
- Support component using a jack.
- Secure component against falling off the jack.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
CAUTION:
Shavings resulting from sawing or grinding components
.
Injury hazard!
Injury hazard!
- Conduct all work in appropriate personal protective equipment only.
- Wear safety goggles and hand protection.

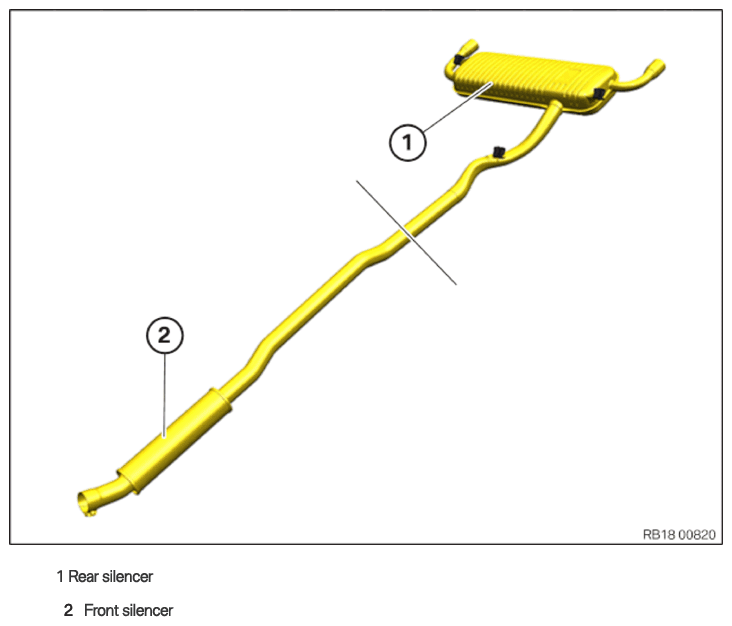

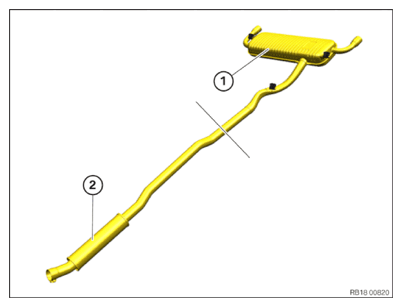

- If the separation point is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new component.
- Transfer the separation point to the component to be replaced and mark.
- Cut through the component to be replaced at the marked point with a suitable tool.
If installed: Disconnecting the plug connection of exhaust flaps
- Unlock plug connection (1)
and disconnect.
- Loosen screw (1) .
- Loosen nuts (2) .
- Release rubber mount (3) from rear silencer (4) .
- Lower rear silencer (4) with a second person, feed out and remove.
