Installing the rear silencer

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Heavy component .
Heavy components can lead to injury or damage .

Remove and install heavy components with the aid of another person/other persons.

CAUTION: Component with heavy weight .
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

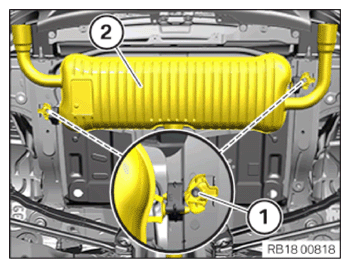

Side the rear silencer (2) in with the assistance of a second person and install.
Replace nuts (1).
Parts: Nuts
Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Exhaust system to body
M8 Replace nuts.	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

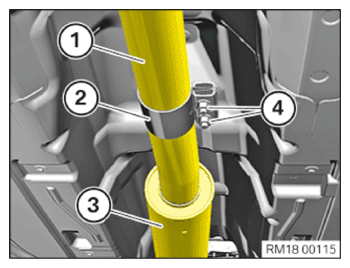

Connect the new rear silencer (1) using the gripper clamp (2) with the front silencer (3).
Center and tighten clamp (2).

TIGHTENING TORQUE SPECIFICATIONS

Clamp with partial replacement of exhaust system
Clamp	tightening torque	45 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Variant with exhaust flap: Installing the exhaust system

Connect connectors (1) and lock.
The connector (1) must engage audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CROSS-MEMBER WITH TORSION STRUTS .
Refer to INSTALLING THE REAR CONNECTING SUPPORTS .
