Removing the lambda oxygen sensor
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING REAR HOOD SEAL .
- Refer to REMOVING FRONT WINDSHIELD PANEL COVER .
- Refer to REMOVING THE UPPER FIREWALL COVER PANEL .
- Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING SUSPENSION CROSS-BRACE .
- Refer to REMOVING THE REAR BULKHEAD .
- Refer to REMOVING CLEAN AIR PIPE .

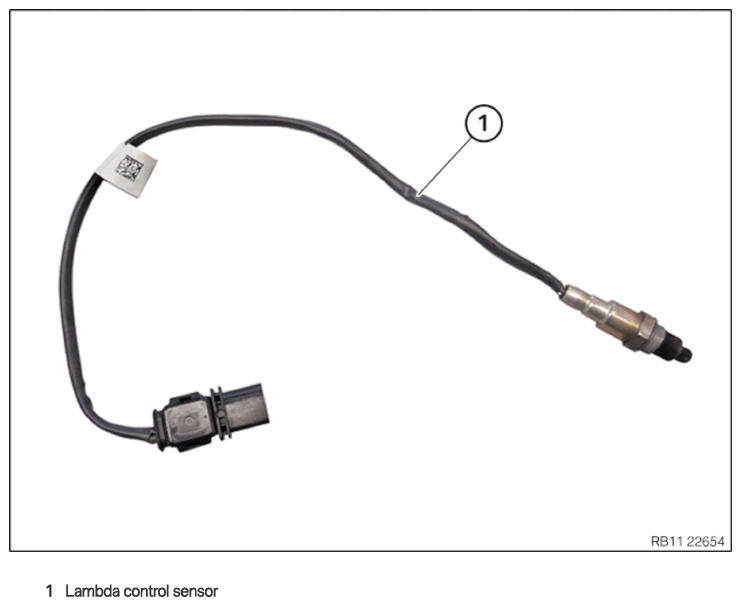

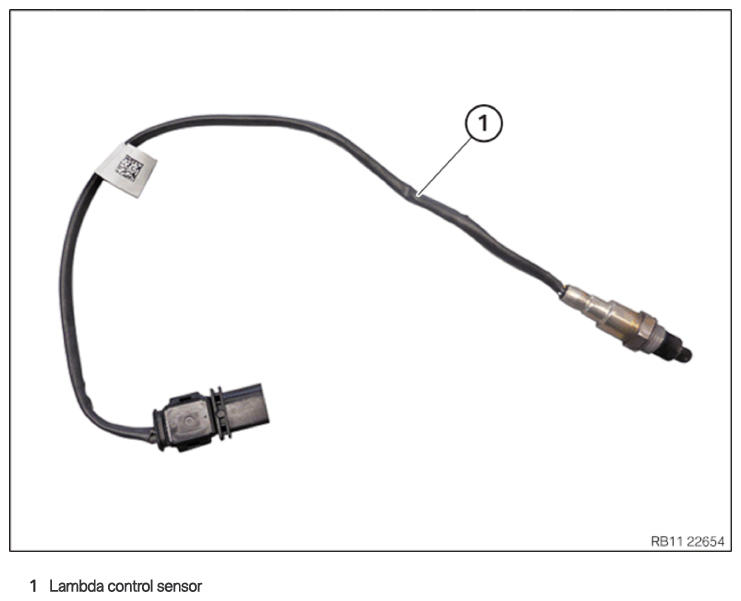

Lambda control sensor
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
- Do not pull on wires when disconnecting connectors and plug connections.
NOTE:
The cable of the Lambda oxygen sensor is black. The installation location of the Lambda oxygen sensor is in front of the catalytic converter.

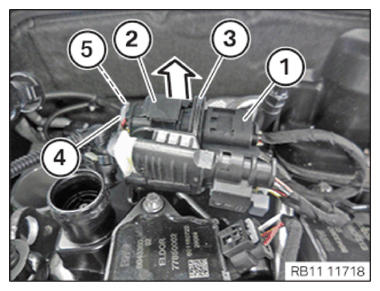

- Unlock plug connection (1) and disconnect.
- Feed out connector (2) from the holder (3) in the direction of the arrow and set aside.
- Feed out cable (5) from the clamp (4) and place to one side.

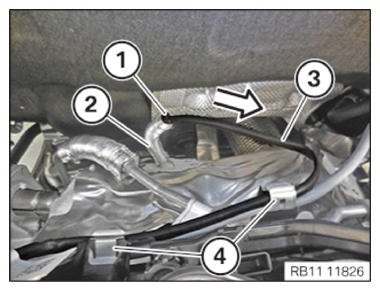

- Release cable tie (1).
- Guide out the thermal protection (2) in arrow direction and set it aside.
- Feed the cable (3) out of the clamps (4) and set it aside.

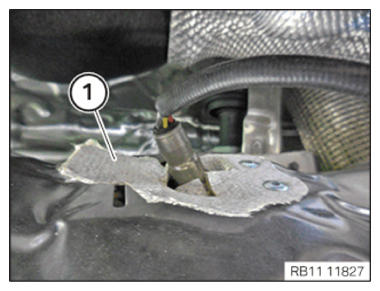

- Feed out cover panel (1) and set it aside.

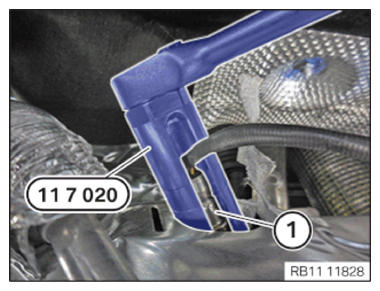

- Release Lambda oxygen sensor (1) with the special tool 0 491 074 (11 7 020) .
- Feed out Lambda oxygen sensor (1) and remove.
