Remove washer fluid reservoir
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING ALL WHEELS .
- Refer to PARTIALLY REMOVING THE FRONT WHEEL ARCH COVER .
- Loosen expanding rivet (1) .
- Loosen screw (2) .
- Remove the cover (3)
.

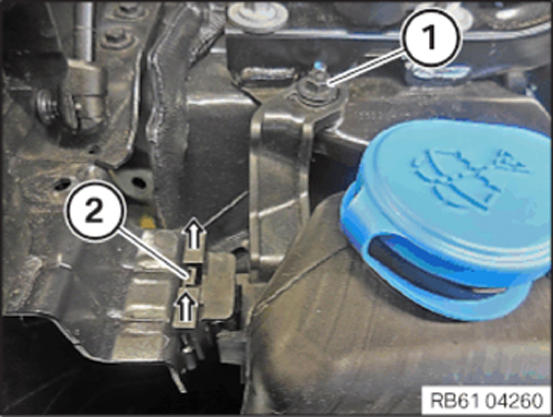

- Loosen nut (1) .
- Unlock and remove connecting piece (2)
.
- Unlock and disconnect the connector (1) on the washer fluid level switch.
- Unlock and disconnect the connector (2) on the window washer pump.
- Unlock and disconnect the hose pipes (3) from the windscreen washer pump.
- Catch the escaping washer fluid.
- Unclip hose pipe (4)
on the washer fluid reservoir for the window washer system.

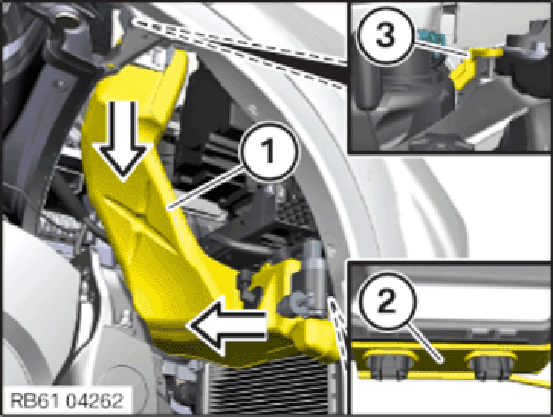

- Unclip and remove washer fluid reservoir (1) from fixture (2) .
- Feed out holder of washer fluid reservoir (3) from threaded bolt.
- Feed out and remove washer fluid reservoir (1)
in direction of arrow.
