Installing the selector lever

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

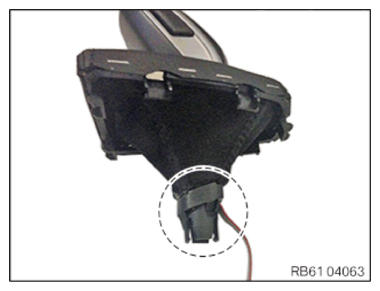

Clip the connector (1) into the plastic guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Make sure that the wiring harness (1) is correctly installed in the plastic guide (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the selector lever on the gearshift rod.
Position the anti-twist lock (mark) by turning it slightly.
The selector lever must not lock with the gearshift rod yet.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect and lock the connector with the plastic guide (1) to the gearshift bracket.

Courtesy of BMW OF NORTH AMERICA, INC.
Push the plastic guide forwards into the upper 2 latch mechanisms.
It should be possible to hear the latch mechanisms snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.
Carefully press down selector lever (1) vertically.
The selector lever must engage on selector rod (2) audibly.

Courtesy of BMW OF NORTH AMERICA, INC.

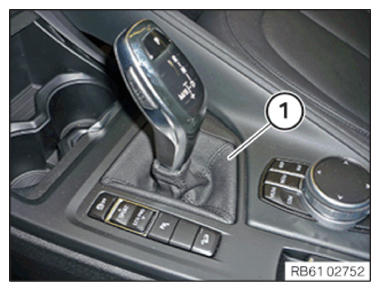

Position the gaiter (1) and clip it in.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to CONNECTING THE BATTERY EARTH LEAD .
