Install the fixed side window glass for rear door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

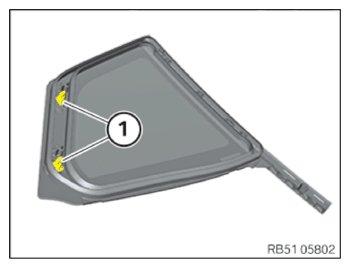

- Check the retaining lugs (1) for damage and replace if necessary.
- Feed the fixed side window glass (1) into the door from the front.
- Slide the fixed side window glass (1) further toward the rear and feed in on the retaining lugs (2).
- Tighten the screws (1).TIGHTENING TORQUE SPECIFICATIONS
Fixed side window glass to door Oval-head screw Tightening torque Tightening torque 2.3 Nm
Follow-up work
- Refer to INSTALLING RUBBER WINDOW SEALING OF REAR DOOR WINDOW GLASS .
- Refer to INSTALLING REAR DOOR WINDOW GLASS .
- Refer to INSTALLING THE OUTER WINDOW FRAME COVER OF THE REAR DOOR .
- Refer to INSTALLING THE OUTER WINDOW CHANNEL STRIP ON THE REAR DOOR .
- Refer to INSTALLING THE SOUND INSULATION ON THE REAR DOOR .
- Refer to INSTALLING REAR DOOR TRIM PANEL .
- Refer to INSTALLING THE COVER ON THE DOOR HANDLE .
