Installing the cover on the window frame
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Precondition
The door window glass is open.

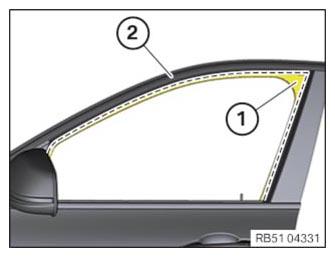

- Make sure the cover (1) is correctly fitted in the joint of the rubber window seal (2).
- Make sure that the cover (1) is correctly fitted on the door seal.
- Feed in the cover (1) at the top on the door frame.
- Connect the plug connection.

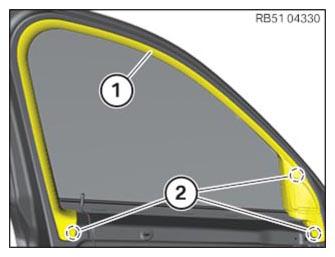

- Clip in the cover (1) at the clamps (2).
Follow-up work
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE COVER ON THE DOOR HANDLE .
