Remove Bowden cable for front hood locks
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE LEFT HOOD LOCK .
- Refer to REMOVING THE RIGHT HOOD LOCK .

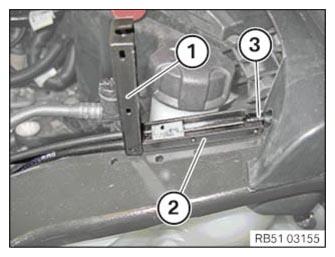

- Unclip clutch housing for Bowden cable (1) from the body at the marked points.
- Fold cover (1) of clutch housing for the Bowden cable (2) open to the front.
- Detach the Bowden cable (3).

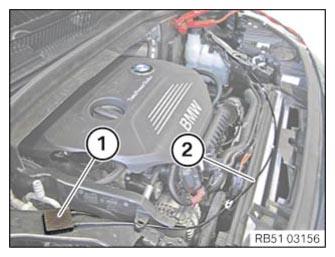

- Unclip clutch housing for the Bowden cable (1) from the body to the top.
- Guide out the Bowden cable (2) and remove it.
