Install the Bowden cable for the front hood lock

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Incorrect routing of the Bowden cable for the hood lock .
Chafing of the coolant ventilation line, coolant loss and engine overheating .

Route the Bowden cable of the hood lock correctly under the lock bridge.
Hook Bowden cable in all clips.
Make sure that the Bowden cable has no contact with the coolant ventilation line.

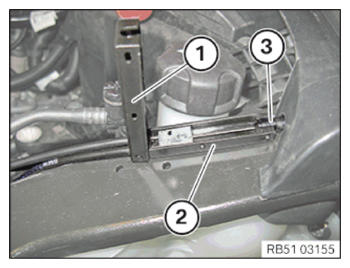

Feed in Bowden cable (2).
Clip in the clutch housing for the Bowden cable (1) on the body.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the Bowden cable (3).
Close the cover (1) from the clutch housing for the Bowden cable (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the clutch housing for the Bowden cable (1) on the body at the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE RIGHT HOOD LOCK .
Refer to INSTALLING THE LEFT HOOD LOCK .
Refer to INSTALLING FRONT CROSS CONNECTION .
Refer to INSTALLING INTAKE SILENCER HOUSING .
Refer to INSTALLING THE INTAKE MANIFOLD FOR THE INTAKE FILTER HOUSING .
