When replacing the center armrest: Remount base plate
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Removing the base plate

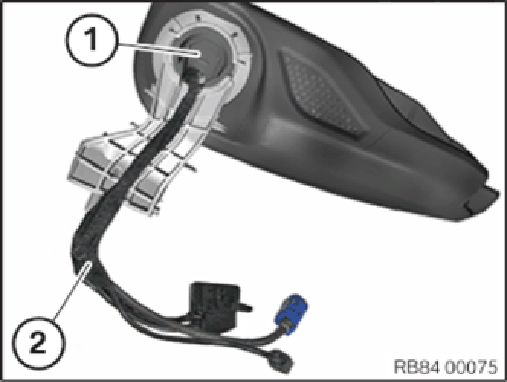

- Expose the access line (2) up to base plate (1).

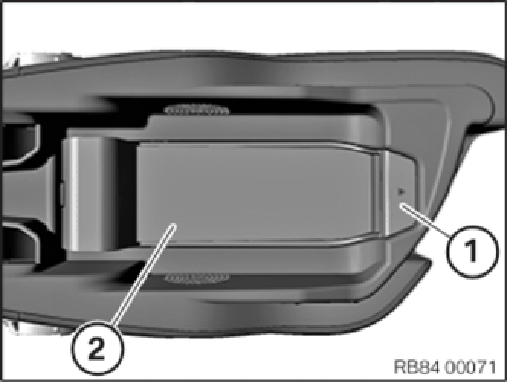

- If necessary, press the button (1) and remove the cover (2).

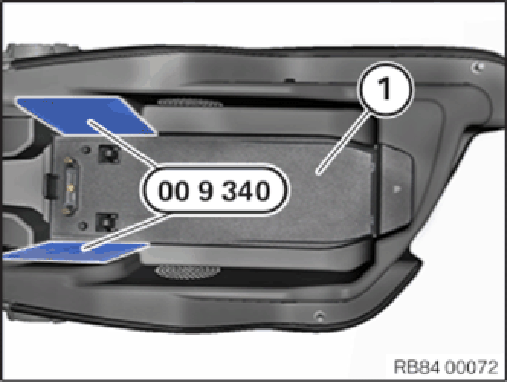

- Disengage the base plate (1) on both sides from the center armrest with special tools 0 493 687 (00 9340)
.

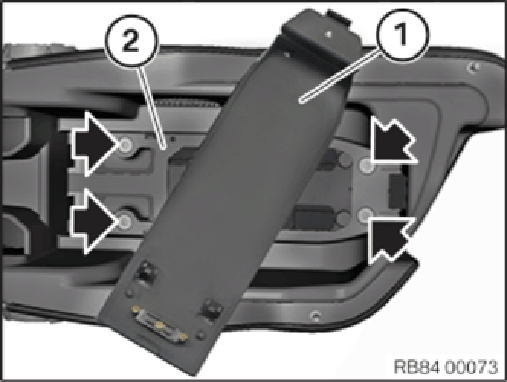

- Turn the base plate (1) away to the side.

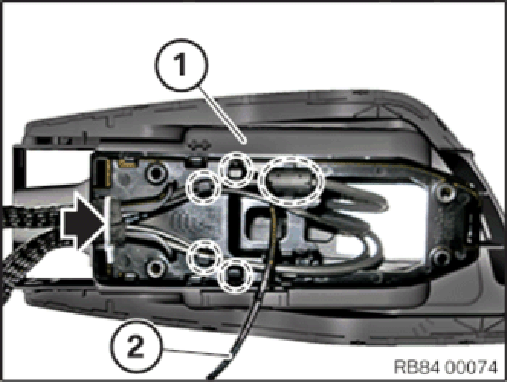

- Unscrew the bolts from the upper housing section (2).
- Remove the upper housing section (1) and release cable straps if necessary.
- Unlock and disconnect the cable (2) to the fan.
- Unclip all cables on underside of the upper housing section (1).
- Thread out all cables and remove base plate.
Installing the base plate
- Thread in all cables and base plate.
- Clip in all cables on underside of upper housing section (1).
- If necessary, fasten cables on the upper housing section (1) with cable straps.
- Connect cable (2) to fan.
- Thread the access line (2) through at the center armrest (1).
- Tighten screws of upper housing section (2).TIGHTENING TORQUE SPECIFICATIONS
Upper housing section Screw Tightening torque 2.7 Nm - Fit the base plate (1) in the upper housing section (2).
- If necessary, fit the cover (2) in the base plate (1).
