Installing protective strip on the rear door
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

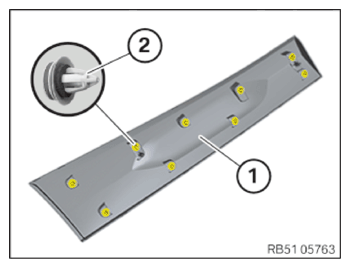

- Lever out the stuck clips (2) with the special tool 2 298 505 from the door outer skin and mount it on the protective strip (1).
- Check clips (2) and the holders for damage.
Damaged clips (2) and clips (2) without sealing ring must be replaced.
The protective strip (1) must be replaced if the holders or the centering pin are damaged.

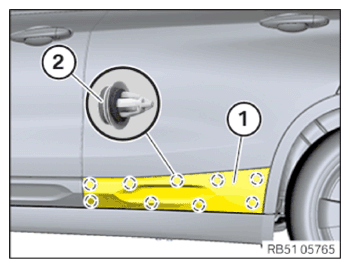

- Correctly position the protective strip (1) and clip in on the clips (2) starting at the front on the centering pin to the rear.
