Installing the protective strip on the front door

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

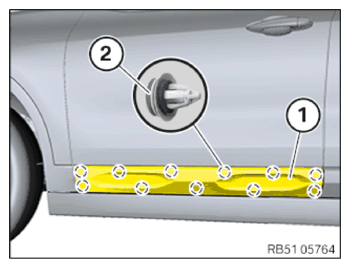

Lever out the stuck clips (2) from the door outer skin with the special tool 2 298 505 and fasten on the protective strip (1).
Check the clips (2) and the holder for damage.
Damaged clips (2) or clips (2) without sealing ring must be replaced.

With damaged holders or centering pins, the protective strip (1) must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.

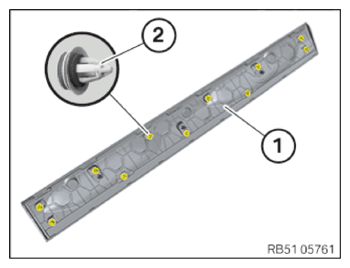

Correctly position the protective strip (1) with the centering pin and clip in on the clips (2) starting from the center to the outer.

Courtesy of BMW OF NORTH AMERICA, INC.
