Remove C-pillar trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for right component only. The procedure on the left side is identical.

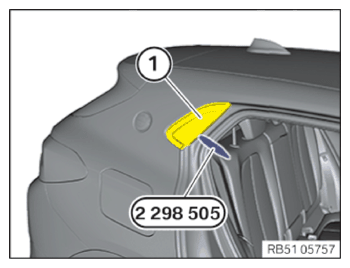

Unclip the C-pillar trim panel (1) using the special tool 2 298 505 .
NOTE: The C-pillar trim panel cannot be removed without damaging it and must be replaced.

Courtesy of BMW OF NORTH AMERICA, INC.
