Install the roof trim strip

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

NOTE: Description is for left component only. Procedure on the right side is identical.

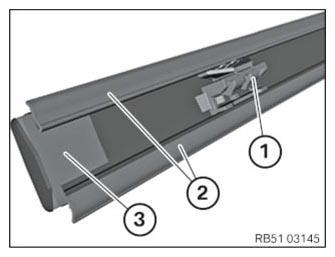

Check clips (1), seals (2) and supports (3) for damage; replace if necessary.
Clips (1), seals (2) and supports (3) must not be damaged or missing.
Position the roof trim strip correctly on the roof.
The position of the clips must match the tabs on the roof.
If necessary, adjust the position of the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

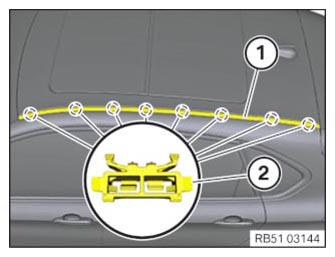

Position the roof trim strip (1) in front flush with the roof outer skin.
Clip in the roof trim strip (1) at the clamps (2).

Courtesy of BMW OF NORTH AMERICA, INC.
