Installing guide for rear center bumper panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

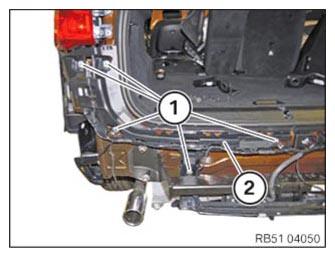

- Feed in and install the guide (2).
- Tighten nuts (1).TIGHTENING TORQUE SPECIFICATIONS
Guide for the bumper panel to body Screw Tightening torque 4.6 Nm Nut Tightening torque 4.6 Nm - Clip in the wiring harness into the holder.
Follow-up work
- Refer to INSTALLING REAR BUMPER PANEL .
- Refer to INSTALLING BOTH TAIL LIGHTS ON THE SIDE PANEL .
- Refer to INSTALLING BOTH TRIM PANELS FOR THE WATER GUTTER .
