Install rear bumper support

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

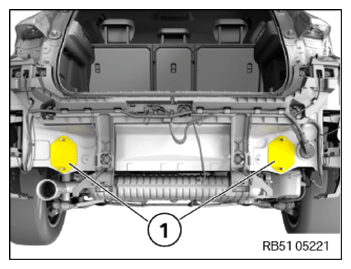

Check seals (1) for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.
Position bumper support (2).

Tighten nuts (1).

TIGHTENING TORQUE SPECIFICATIONS

Rear bumper support to tail panel
Nuts M12	Tightening torque	108 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING REAR BUMPER PANEL .
Refer to INSTALLING BOTH TAIL LIGHTS ON THE SIDE PANEL .
Refer to INSTALLING BOTH TRIM PANELS FOR THE WATER GUTTER .
