Removing the front right deformation element
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE INTAKE MANIFOLD FOR INTAKE SILENCER HOUSING .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE AIR DUCT TO THE RADIATOR .
- Refer to REMOVING FRONT CROSS CONNECTION (AIR DUCT REMOVED) .
- Refer to RELEASING WASHER FLUID RESERVOIR .
- Unlock locking pins (1) on the cross connection (3) to the bottom.
- Thread out and remove locks (2).

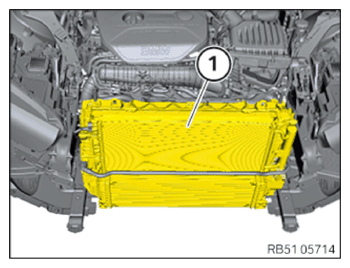

- Lift radiator module (1) from the lower holders and slide slightly to the left.

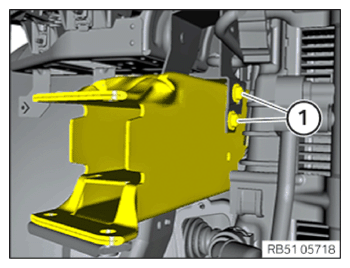

- Release the screws (1) with the special tool 2 463 965
.

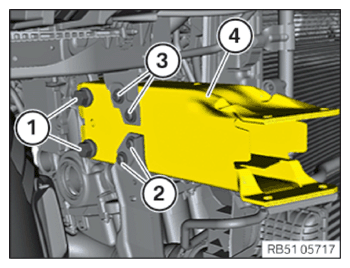

- Loosen screws (1).
- Loosen screws (2).
- Loosen screws (3).
- Guide out the front right deformation element (4) toward the front and remove.
