Replacing anti-roll bar link for anti-roll bar on left or right (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Refer to REMOVING REAR WHEEL .

Removal:

Release screw (1).

G15170764

Courtesy of BMW OF NORTH AMERICA, INC.

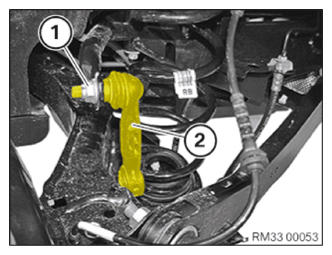

Release nut (1), if necessary, grip at inner Torx socket.

Remove anti-roll bar link (2).

G15170765

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

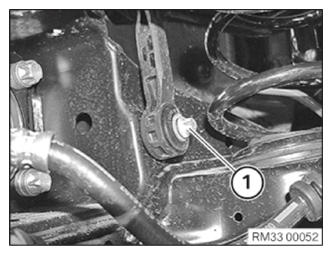

Screw on new anti-roll bar link by hand with screw (1) to trailing arm.

Do not yet apply torque!

G15170766

Courtesy of BMW OF NORTH AMERICA, INC.

Insert anti-roll bar link (2) on anti-roll bar.

Part: Replace nut (1).

Tighten nut (1). If necessary, hold up at the Torx socket.

Tightening torque 33 55 1AZ .

G15170767

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) on trailing arm.

Tightening torque 33 55 2AZ .

G15170768

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING REAR WHEEL .
