Replacing rear left or right side shock absorber (X2 2018-2023)

Special tools required:

• 2 355 965
• 2 355 966

Attention!

• F48 Vehicles up to 11/2017:

Due to the modified shock absorber setting, replace the shock absorbers only in pairs.

Failure to comply with this instruction will result in negative effects on the drivability.

Necessary preliminary work:

• Refer to REMOVING REAR SHOCK ABSORBER .

Removal:

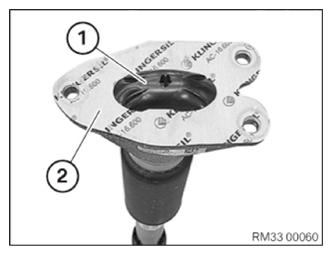

Remove protective cap (1).

Remove gasket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

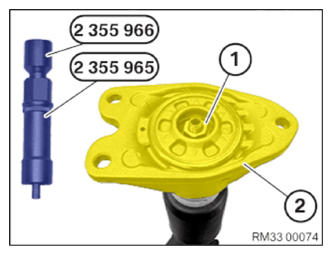

Release nut (1) with special tool 2 355 965 and 2 355 966.

Remove spring strut mounting (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove gasket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

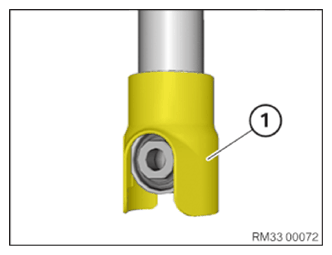

Where applicable and if available, remount stoneguard (1).

Installation note:

Attention!

Stoneguard (1) is different on the left and right. Also refer to the BMW applicable BMW parts catalogue!

Ensure correct latch mechanism/tight fit during installation. Stoneguard must engage noticeably (double click).

Courtesy of BMW OF NORTH AMERICA, INC.

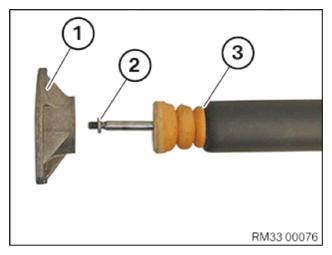

Part: Replace auxiliary damper with protective tube (3).

Connect additional absorber with protective tube (3) onto shock absorber.

Connect gasket (2) and support bearing (1).

Courtesy of BMW OF NORTH AMERICA, INC.

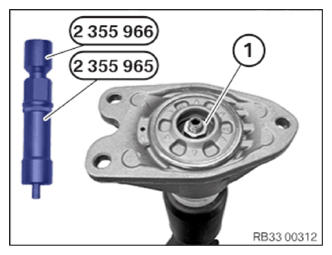

Part:  Replace nut (1).

Screw on nut (1) and tighten with special tool 2 355 965 and 2 355 966.

Tightening torque 33 52 3AZ .

Impact screwdrivers are prohibited!

Risk of damage inside the shock absorber!

Courtesy of BMW OF NORTH AMERICA, INC.

Check protective cap (1) for damage.

Part:  Replace protective cap (1) if necessary.

Mount protective cap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING REAR SHOCK ABSORBER .
