Replacing wheel bearing (hub) for rear wheel (FWD) (X2 sDrive 28i 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Necessary preliminary tasks:

Refer to REMOVING REAR WHEEL .
Refer to REMOVE REAR BRAKE ROTOR .

Removal:

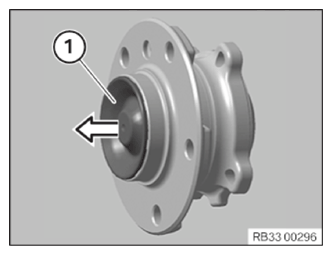

Lever off protective cap (1).

G15170717

Courtesy of BMW OF NORTH AMERICA, INC.

Release screws (1).

Remove wheel bearing (hub).

G15170718

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

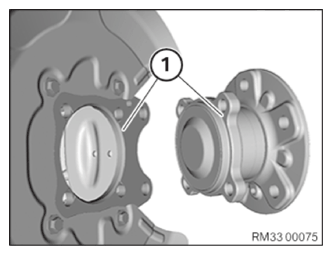

Keep contact surfaces (1) of wheel carrier and wheel bearing (hub) clean and free from oil and grease.

G15170719

Courtesy of BMW OF NORTH AMERICA, INC.

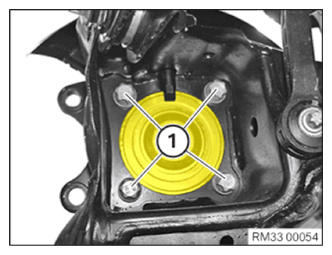

Align new wheel bearing (hub) to trailing arm.

Part: Replace screws (1).

Tighten down screws (1).

Tightening torque 33 41 1AZ .

G15170720

Courtesy of BMW OF NORTH AMERICA, INC.

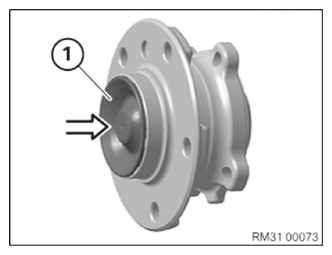

Connect protective cap (1).

G15170721

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Refer to INSTALLING THE REAR BRAKE DISC .
Refer to INSTALLING REAR WHEEL .
