Replacing a rubber mount in trailing arm, front (X2 2018-2023)

Special tools required:

• 2 361 473
• 2 361 474
• 2 361 475
• 33 3 011
• 33 4 450
• 2 361 480
• 2 361 477

Necessary preliminary work:

• Refer to REMOVING TRAILING ARM .

Removal:

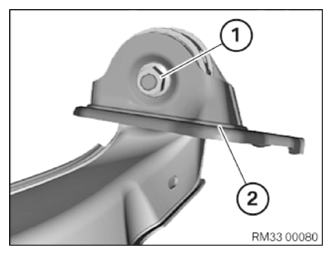

Slacken nut (1).

Pull out screw.

Remove the trailing arm bearing support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

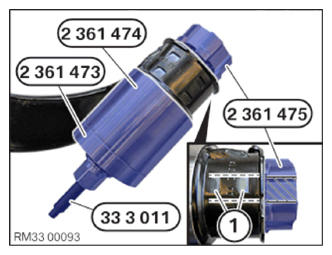

Pull out rubber mount with special tools 2 361 473, 2 361 474, 2 361 475 and 33 3 011  .

Attention!

Risk of damage!

Position special tool 2 361 475 in such a way that the recesses on the special tool align with the notches (1) on the trailing arm.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

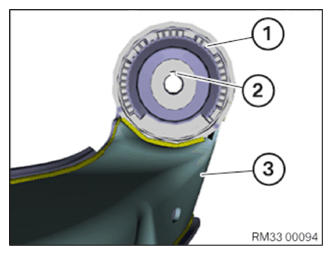

When pulling in the rubber mount (1), the slot (2) has to be positioned in regards to the trailing arm (3) as shown in the graphic.

Courtesy of BMW OF NORTH AMERICA, INC.

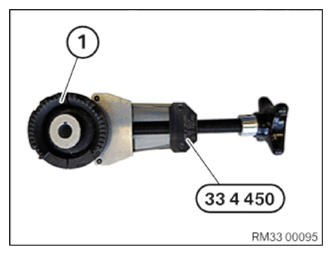

Pull together the rubber mount (1) using the special tool 33 4 450.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the rubber mount (1) on the trailing arm.

• Make absolutely sure the rubber mount is in its proper installation position!

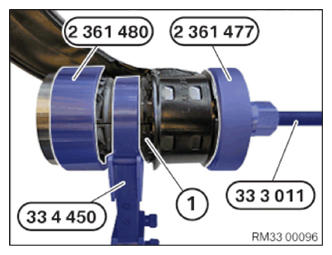

Mount special tools 2 361 480, 2 361 477 and 33 3 011  .

Pull special tool 2 361 480 over rubber mount (1).

Insert rubber mount (1) to the point where special tool 33 4 450 abuts with trailing arm.

Remove special tool 33 4 450.

Insert rubber mount (1) to limit position.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the trailing arm bearing support (2).

Part:  Replace nut (1).

Insert bolt and screw on nut (1).

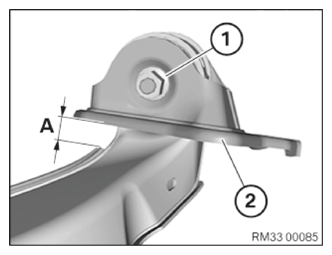

Adjust dimension A of the trailing arm bearing support in relation to the trailing arm.

• Dimension A = 18 mm (± 3 mm) Tighten nut (1).

Tightening torque 33 32 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING THE LEFT OR RIGHT TRAILING ARM
• Carry out wheel alignment procedure. Refer to KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT WITH RIDE HEIGHT MEASUREMENT WITHOUT LOADING THE VEHICLE .
