Removing and installing/replacing bottom left wishbone (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)

Necessary preliminary work:

• Refer to REMOVING LEFT REAR WHEEL .
• Refer to REMOVING EXHAUST SYSTEM .

Removal:

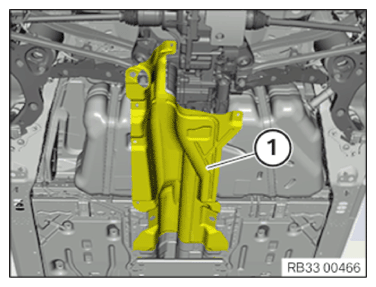

Remove rear heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Mark the position of eccentric washer to the trailing arm to simplify the subsequent adjustment of rear axle.

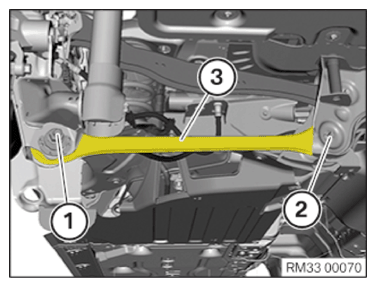

Release nut and remove screw (2).

Slacken nut (1).

Remove eccentric washer and unscrew screw.

Remove wishbone (3).

Installation note:

Tighten screw connection (1) and (2) in NORMAL POSITION .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Align wishbone (3).

Replace the eccentric screw (1), eccentric washer and the nut.

Insert bolt (1) and connect eccentric washer.

Align eccentric washer to the marked position.

Parts:  Eccentric bolt, eccentric washer and nut

Tighten nut (1) in normal position (during wheel alignment).

Tightening torque 33 32 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screw (2) and nut.

Insert bolt (2) and screw on nut.

• Do not yet tighten to specified torque

Move vehicle into NORMAL POSITION .

Tighten nut of bolt (2) in normal position.

Tightening torque 33 32 3AZ .

Parts:  Bolt and nut

Mount heat shield (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to MOUNT THE EXHAUST SYSTEM .
• Refer to MOUNT LEFT REAR WHEEL .
• Refer to PERFORM WHEEL ALIGNMENT .
