Replacing rear cross member (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Refer to REMOVING CROSS MEMBER .
Removal:

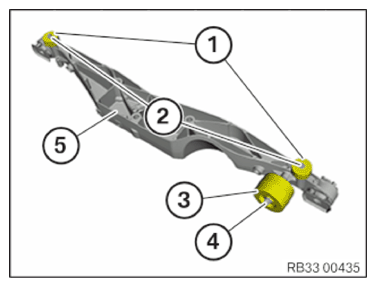

Unfasten screws (2).
Remove additional weights (1) from rear axle support (5).
Release screw (4).
Remove vibration absorber (3) from rear axle support (5).
Installation:
Position additional weights (1) on rear axle support (5).
Part: Replace screws (2).
Tighten down screws (2).
Tightening torque 33 31 7AZ .
Position vibration absorber (3) on rear axle support (5).
Part: Replace screw (4).
Tighten screw (4).
Tightening torque 33 31 5AZ .
Required follow-up work:
- Refer to INSTALLING CROSS MEMBER .
