Replacing rear axle support (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)

Necessary preliminary work:

• Refer to REMOVING REAR WHEELS .
• Refer to REMOVING COMPLETE EXHAUST SYSTEM .
• Refer to REMOVING REAR AXLE FINAL DRIVE .
• Refer to REMOVING THE LEFT AND RIGHT TRAILING ARM COVERS .
• Refer to REMOVING TANK COVER ON LEFT AND RIGHT .

Removal:

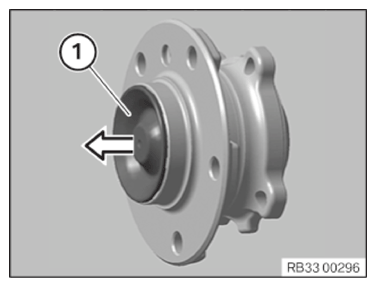

Lever out the protective cap (1) to the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

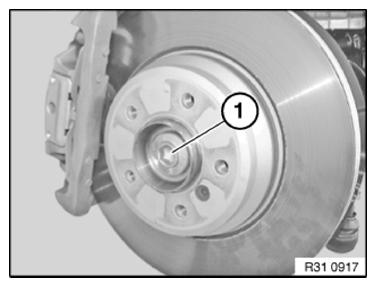

Release collar bolt (1) to the left and right and to do this press the brake pedal.

Remove the left and right output shafts.

Courtesy of BMW OF NORTH AMERICA, INC.

Press brake pedal down to floor and secure with pedal support.

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove all wishbones. Refer to TRAILING ARMS AND STRUTS

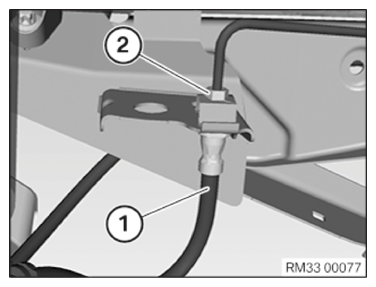

Release hollow nut (2).

Detach brake hose (1) on left and right from brake line.

Courtesy of BMW OF NORTH AMERICA, INC.

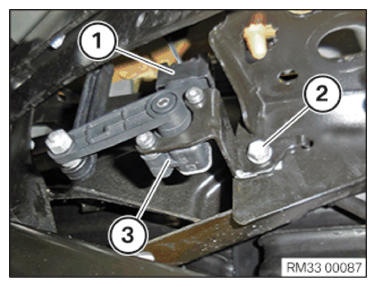

Only for rear ride height sensor:

Disconnect connector (1).

Release screw (2).

Remove ride height sensor.

Courtesy of BMW OF NORTH AMERICA, INC.

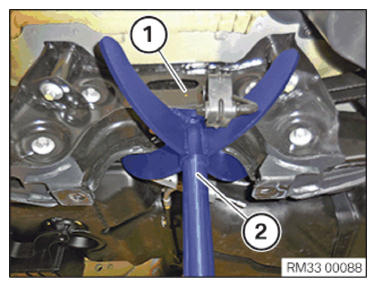

Support rear axle support (1) with workshop jack (2).

Courtesy of BMW OF NORTH AMERICA, INC.

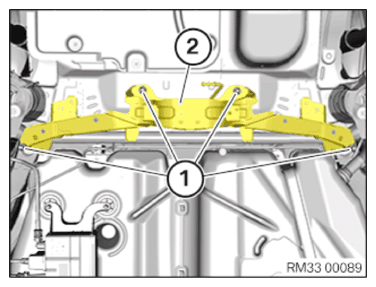

Release screws (1) from rear axle support (2).

Lower rear axle support by approx. 10 cm.

Courtesy of BMW OF NORTH AMERICA, INC.

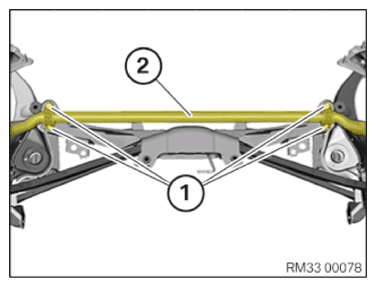

Release screws (1) from anti-roll bar (2).

Courtesy of BMW OF NORTH AMERICA, INC.

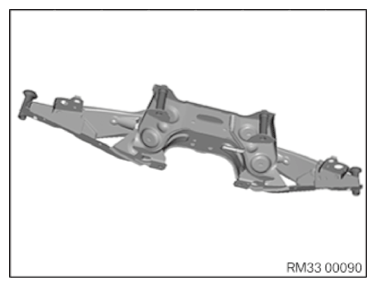

Remove rear axle support.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position rear axle support with workshop jack on vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down anti-roll bar (2) with screws (1) on rear axle support.

Tightening torque 33 55 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down rear axle support (2) with screws (1) on vehicle.

Tightening torque 33 31 1AZ .

Lower workshop jack and put away.

Courtesy of BMW OF NORTH AMERICA, INC.

Only for rear ride height sensor:

Position ride height sensor.

Tighten screw (2).

Tightening torque 37 14 3AZ .

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect brake hose (1) on left and right to brake line.

Tighten down hollow nut (2).

See TIGHTENING TORQUE .

Courtesy of BMW OF NORTH AMERICA, INC.

• Install all wishbones. Refer to TRAILING ARMS AND STRUTS
• Bleed brake system.

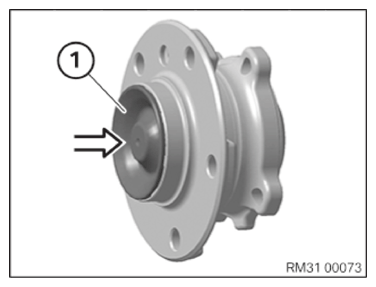

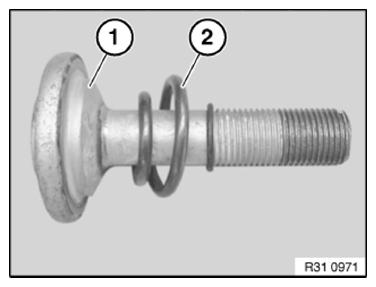

• Pay attention to installation position of compression spring (2).
• Keep collar bolt and spur gearing of wheel bearing/output shaft clean and free from grease

Courtesy of BMW OF NORTH AMERICA, INC.

Position the left and right output shafts at the wheel bearing.

Part:  Replace the collar bolts and compression springs.

Tighten collar bolt (1) and compression spring hand-tight.

Courtesy of BMW OF NORTH AMERICA, INC.

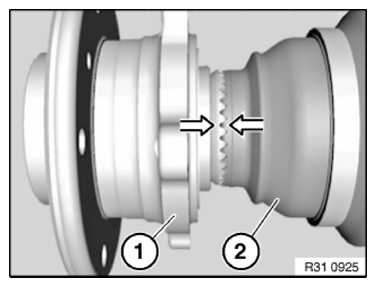

• Spur gearing of wheel bearing (1) and output shaft (2) must be installed form-fit (tooth in tooth position)!

Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.

Once a form-fit has been ensured, tighten to final torque.

Tightening torque 33 41 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Fit the left and right protective caps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release pedal support.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Refer to INSTALLING REAR AXLE DIFFERENTIAL .
• Refer to INSTALLING TANK COVER ON LEFT AND RIGHT .
• Refer to INSTALLING INSTALL EXHAUST SYSTEM .
• Refer to INSTALLING REAR WHEELS .
• Refer to CARRYING OUT WHEEL ALIGNMENT PROCEDURE .
