Replace clutch of rear axle differential (AWD) (X2 xDrive 28i 2018-2023, X2 M35i 2019-2022)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Special tools required:

0 496 080 (33 5 206
0 496 080
2 460 340
F405 AC
A4CF405

WARNING: DANGER OF POISONING if oil is ingested/absorbed through the skin!
RISK OF INJURY if oil comes into contact with eyes and skin!

CAUTION: Risk of damage!
Failure to observe the oil specifications leads to serious damage to the hang-on clutch!

Use only the APPROVED OIL (see applicable BMW parts catalogue) for the hang-on clutch.
The oil to be filled must be at least at the room temperature (greater than 18°)
Adhere exactly to the oil capacity

CAUTION: Risk of damage!
Failure to observe the oil filling/draining leads to serious damage to the hang-on clutch!

To ensure correct oil filling of the hang-on clutch, the oil balance of the hang-on clutch must be completely drained before filling (remove the hang-on clutch and swivel the differential down).
To ensure correct oil filling of the hang-on clutch, the differential must always be swivelled down, even when oil is being filled.
The oil filler plug on the reservoir cap is not a fill level control screw!

CAUTION: Read and comply with notes on protection against electrostatic discharge (ESD protection)!
For additional information see: NOTES ON ESD PROTECTION (ELECTRO STATIC DISCHARGE) .

NOTE: Hang-on clutch, replace the clutch only in conjunction with the control unit for longitudinal torque distribution!

Necessary preliminary work:

Refer to REMOVING COMPLETE EXHAUST SYSTEM .
Refer to REMOVING THE LEFT-HAND TORSION STRUT .
Remove heat shields. Refer to REMOVING FRONT HEAT SHIELD , and REMOVING HEAT SHIELD AT REAR , and REMOVING HEAT SHIELD AT UPPER EXHAUST TURBOCHARGER .
Refer to REMOVING AND TYING BACK PROPELLER SHAFT ON REAR AXLE FINAL DRIVE .

Removal:

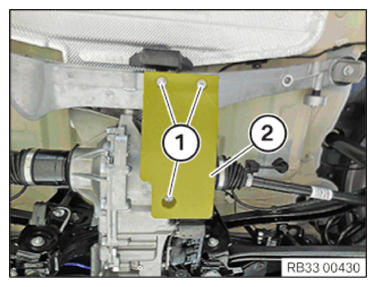

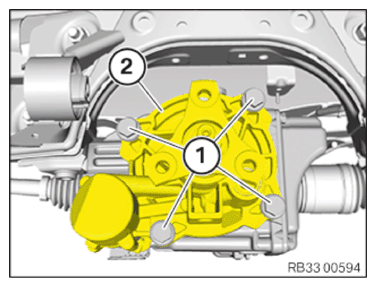

Unfasten screws (1).

Remove cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.

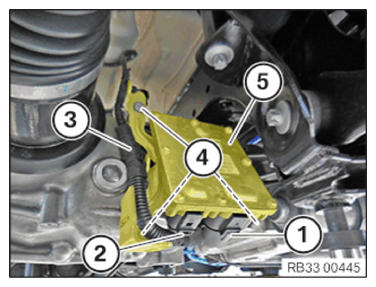

Disconnect plug (2).

Loosen the connector (1) and loosen the cable (3) from the control unit holder.

Unfasten screws (4).

Remove control unit (5) together with bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

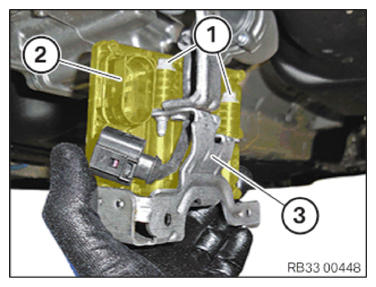

Unfasten screws (1).

Remove the longitudinal torque distribution control unit (2) from the bracket (3).

Loosen the cable from the bracket (3).

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Danger of injury!

Check the tensioning strap for visible damage before each use.
Do not install the tensioning belt in a twisted manner.

Risk of damage!

Non-compliance may lead to damage to the output shafts/dust plates .

The tensioning belt must not touch the dust plate of the output shaft .
The tensioning belt must not be in contact with the gaiter on the output shaft .

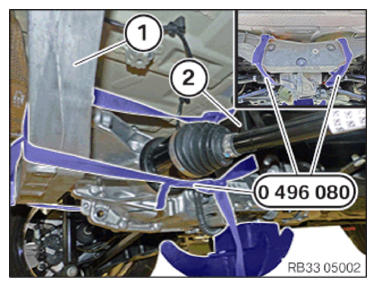

Before releasing the rear axle differential, secure the rear axle differential with the tensioning belt 0 496 080 (33 5 206), or hook it.

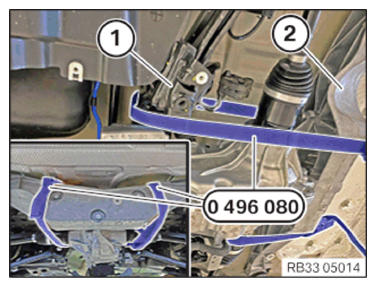

Thread the tensioning belt 0 496 080 between the body, cross-member (1) and rear axle support (2).

Guide the tensioning belt 0 496 080 around the output shaft, connect and stretch both the ends.

Courtesy of BMW OF NORTH AMERICA, INC.

Only release the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

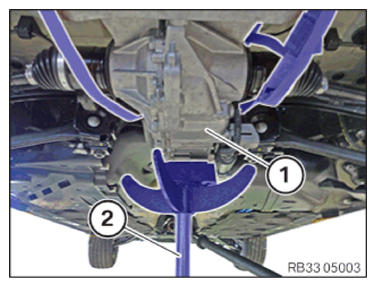

Support rear axle differential (1) with universal jack (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (1) of rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

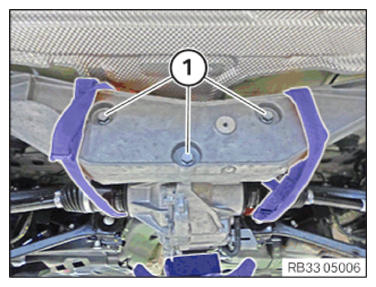

Release the screws (1) from the differential cross member at the rear axle differential.

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of damage!
Non-compliance may lead to damage to the output shafts/dust plates.

The tensioning belt must not touch the dust plate of the output shaft.
The tensioning belt must not be in contact with the gaiter on the output shaft.

Courtesy of BMW OF NORTH AMERICA, INC.

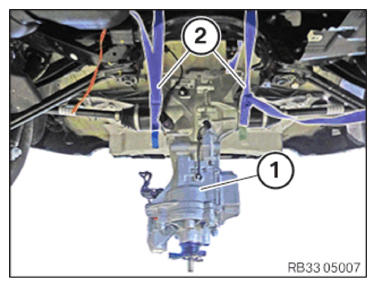

Lower the differential with universal jack.

Rear axle differential maximum 22-27 cm (distance from the body to the center of the output shaft).

Adjust the length of the tensioning belt accordingly.

Remove the universal jack and swivel/tilt the rear axle differential downwards.

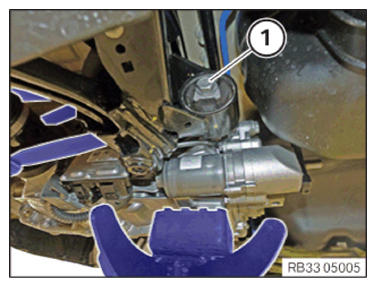

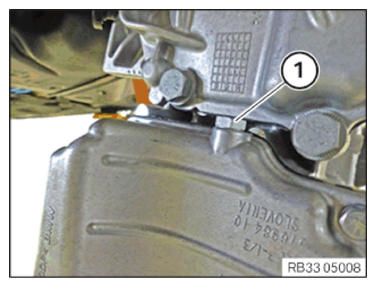

Release the oil filler plug (1) on the oil expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.

Recycling:

Catch and dispose of escaping differential oil.

Observe country-specific waste disposal regulations.

Place oil drip tray under the rear axle differential.

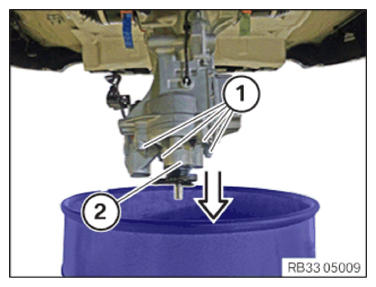

Release the screws (1) on the hang-on clutch (2).

Pull the hang-on clutch (2) downwards out of the clutch housing.

Let the oil drain completely from the differential housing.

If re-installing or before disposal:

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the hang-on clutch through 360° spherically so that all of the oil (especially from the pump suction chamber) runs out.

Installation:

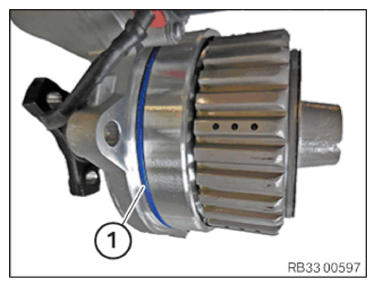

Coat sealing ring (1) with oil.

Installation note:

Replace sealing ring (1).

Parts: Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

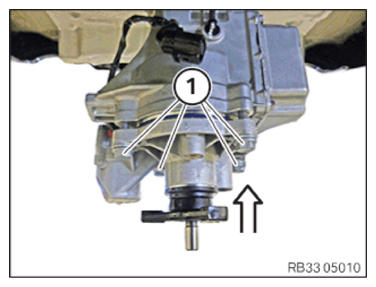

Insert the hang-on clutch into the clutch housing.

Pull in the hang-on clutch by evenly tightening the screws (1) crosswise.

Tighten down screws (1).

Tightening torque 33 10 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

CAUTION: Risk of damage!
Failure to observe the oil specifications leads to serious damage to the hang-on clutch!

Only use the APPROVED OIL (see applicable BMW parts catalogue) for the hang-on clutch.
The oil to be filled must be at least at the room temperature (greater than 18°)
Adhere exactly to the OIL CAPACITY .

Installation note:

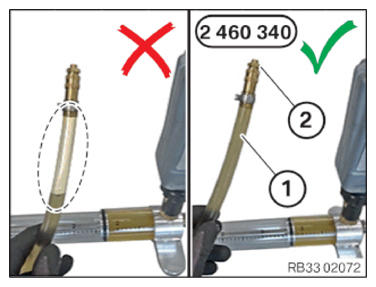

It is imperative to ensure that there is no air in the hose when topping up a defined (measured) oil quantity .

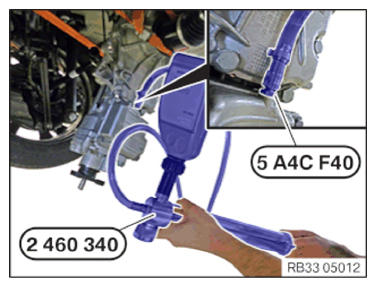

Use special tool 2 460 340 for topping up.

When topping up a defined (measured) oil quantity, first fill hose (1) with oil. To do this, connect an adapter (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Download video

NOTE: The training video illustrates the methodology for the rear axle differential oil change using the oil spray special tool.
The training video does not replace the repair instructions.
The training video is not subject to the update service.
We can assume no liability for printing errors or inaccuracies in this service information and reserve the right to introduce technical modifications at any time.

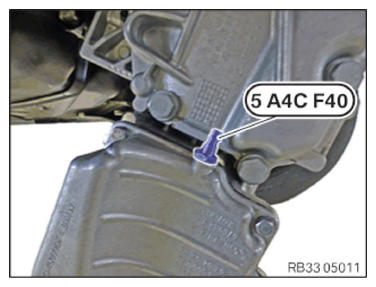

Screw the special tool F405 AC in for oil spray on the oil reservoir cap.

Tightening torque: maximum 2 Nm
