Notes on repairing threads (X2 2018-2023)

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

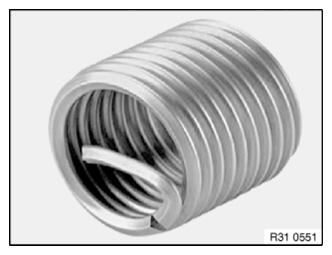

IMPORTANT: Install Helicoil thread inserts so that they are flush with the original thread.
NOTE: Damaged threads in the frame side member may be repaired with Helicoil thread inserts. Comply with the PROCEDURE described in the example.
G15170271Courtesy of BMW OF NORTH AMERICA, INC.
