Removing the engine from the assembly jig
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.

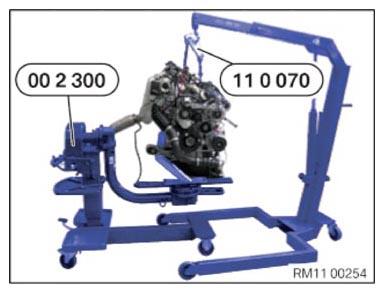

- Hook the workshop crane with the special tool 0 490 579 (11 0 070) and position the engine (1)
.

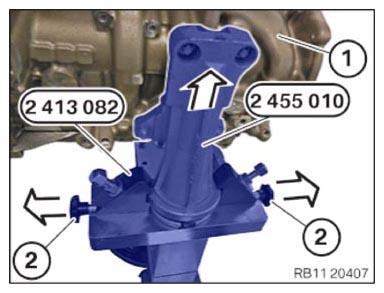

- Release nuts at the special tool 2 413 082 .
- Detach the holder (2) in the direction of the arrow.
- Release the engine (1)
with the special tool 2 455 010
out of the special tool 2 413 082
in the direction of the arrow.

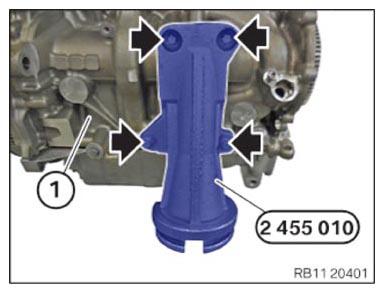

- Release the standard screws (arrows).
- Guide out and remove the special tool 2 455 010
at the engine (1)
.

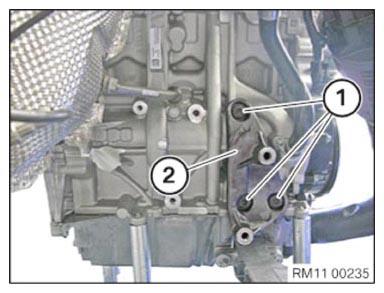

- Insert and install the holder (2) .
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Holder to crankcase | ||
|---|---|---|
| M10 | Tightening torque | 38 Nm |
