Removing front left and right wheel arch cover

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Perform the steps on the right and left side.

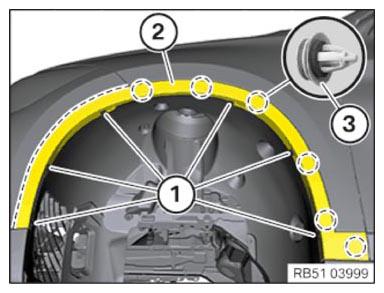

Removing the front wheel arch trim

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

NOTE: Description is for left component only. Procedure on the right side is identical.

Remove the blind rivets (1).
Loosen the wheel arch trim (2) in the area of the side panel from the clips (3).
Loosen the wheel arch trim (2) from the locks on the bumper and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

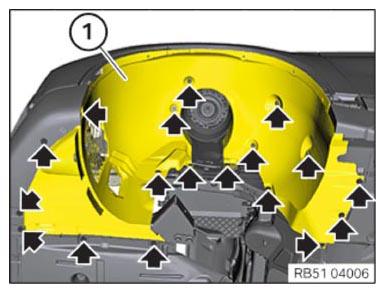

Remove front wheel arch cover

Unscrew all bolts and nuts (arrows).
Guide the wheel arch cover (1) out.

Courtesy of BMW OF NORTH AMERICA, INC.
