Remove the backrest cover with the upholstery for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

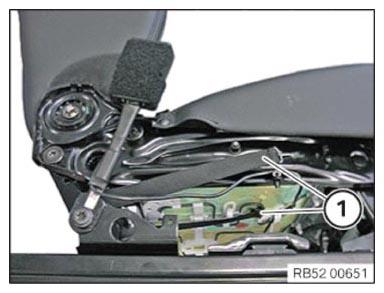

- Detach retaining strap (1)
on left and right from seat mechanism.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

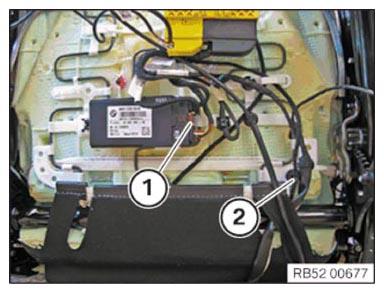

- Version with seat heating only:
- Unlock plug connection (1)
and disconnect.
- Release cable clip (2)
and feed out cable.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

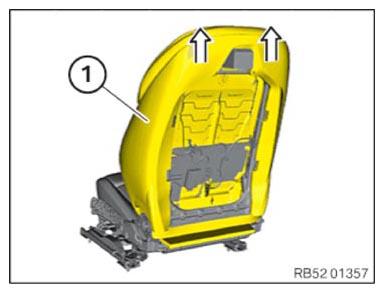

- Feed out backrest cover (1)
complete with cushion in upward direction.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
